11 Jewel HB & Sons Platform

Stock Code:
E028.00300
RRP:
$187.00
Your Price:
$187.00
Stock Level:
6 Available
Make an Enquiry

Details

Description

"HB & Son" Mechanical

Part Number : E028.00300

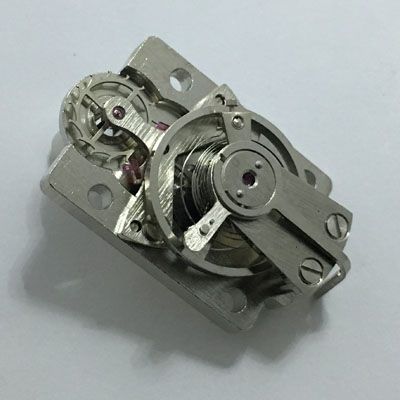

Description : 11 Jewel Platform Escapement to suit HB and Sons Mechanical W.00803 Movement

Size : 27 mm Long x 17 mm Wide x 10 mm High (3 mm Plate Thickness)
Weight : 15 Grams
Material : Stainless Steel, Spring Steel

Features : 11 Jewels, 14 Tooth Wheel, 7 Leaf Pinion
9000 Swings Per Hour - 18000 Beats Per Hour

Pinion Length Approx. XXmm Between Jewels
Pinion 9mm Under Plate
XXmm Overall Platform Height

Uses : These Alain Parts
Individual Parts are not Available for this Assembly

Suits : These Alain Parts
W.00803 HB and Sons Movement

Notes : Advance and Retard Adjustment for Accurate Time Keeping
***Please also note these are checked for working condition prior to sending and as they are sensitive to handling, we do not offer warranty replacements due to damage or change of mind replacements on these items.
Any authorised returns will be subject to a 10% or 15% restocking & Testing fee.

See : Other Balances
