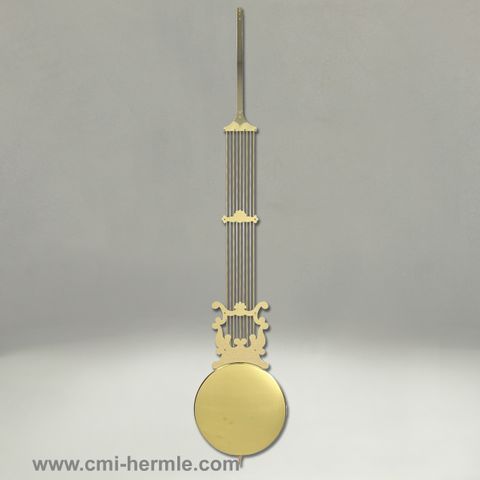

Lyre Pendulum 220mm dia x 1080mm (114cm Series)

Stock Code:

PL.30

RRP:

$198.00

Your Price:

$198.00

Stock Level:

1 Available

Make an Enquiry

Details

Description

"Hermle" Mechanical

Part Number : PL.30

Description : Polished Lyre Pendulum to suit Hermle Mechanical Movements in 114cm series

Size : 1080 mm Total Length
Disk : 220 mm Diameter
Weight : 590? Grams
Material : Polished Brass Alloy and Alloy/Stainless Steel construction

Centimeter Series Information :
Centre Handshaft to Centre of disk : 1045 mm
Centre Handshaft to Bottom of disk : 1209 mm
Minimum Case Width for correct operation of "Auto Beat Adjustment" is : 400 mm
Working Beat Width is : 385 mm

Features : Polished Finish Lyre Pendulum with Brass Centre Bar and Parallel Round Bars
with Brass Alloy Bow Ties and Lyre

Uses : Hermle Parts
232 (220mm Pendulum Disk)
B021.0XXX (Brass Pendulum Rod)
E008.05290 (Pendulum Nut)

Suits : Movements
W.00461.### in 114cm series
W.01161.053 in 114 cm series
W.01161.853 in 114 cm series
W.01171.853 in 114cm Series

Notes : The Length and Weight of the Pendulum Determine the Duration of the Swing

See : Lyre Pendulums
PL.17 75cm series with 115mm disk
PL.18 85cm series with 140mm disk
PL.20 94cm series with 165mm disk
PL.22 94cm series with 140mm disk
PL.33 114cm series with 165mm disk
PL.34 114cm series with 270mm disk
PL.35 114cm series with 270mm disk
PL.36 114cm series with 270mm disk
