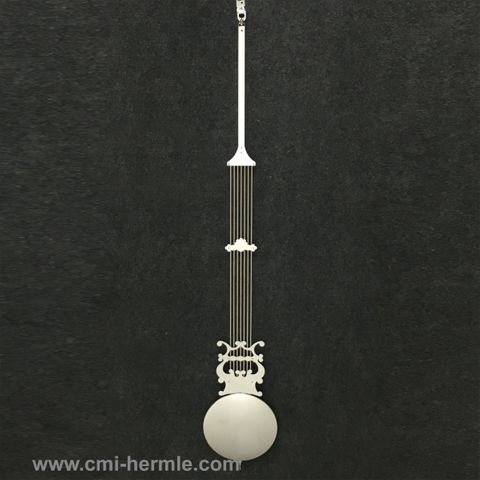

Lyre Pendulum 180mm dia x 1080mm (114cm Series) Chrome

Stock Code:

PL.31

RRP:

$148.50

Your Price:

$148.50

Stock Level:

8 Available

Make an Enquiry

Details

Description

"Hermle" Mechanical

Part Number : PL.31

Description : Nickel Plated Lyre Pendulum to suit Hermle Mechanical Movements in 114cm series

Size : 1080 mm Total Length
Disk : 180 mm Diameter
Weight : 590 Grams
Material : Nickel Plated Brass Alloy and Alloy/Stainless Steel construction

Centimeter Series Information :
Centre Handshaft to Centre of disk : 1034 mm
Centre Handshaft to Bottom of disk : 1144 mm
Minimum Case Width for correct operation of "Auto Beat Adjustment" is : 350 mm
Working Beat Width is : 310 mm

Features : Nickel Plate Finish Lyre Pendulum with Centre Bar and Parallel Round Bars
with Brass Alloy Bow Ties and Lyre

Uses : Hermle Parts
??? (180mm Pendulum Disk)
B021.0XXX (Brass Pendulum Rod)
E008.05290 (Pendulum Nut)

Suits : Movements
W.00461.### in 114cm series
W.01161.053 in 114 cm series
W.01161.853 in 114 cm series
W.01171.853 in 114cm Series

Notes : The Length and Weight of the Pendulum Determine the Duration of the Swing

See : Lyre Pendulums
PL.17 75cm series with 115mm disk
PL.18 85cm series with 140mm disk
PL.20 94cm series with 165mm disk
PL.22 94cm series with 140mm disk
PL.33 114cm series with 165mm disk
PL.34 114cm series with 270mm disk
PL.35 114cm series with 270mm disk
PL.36 114cm series with 270mm disk
