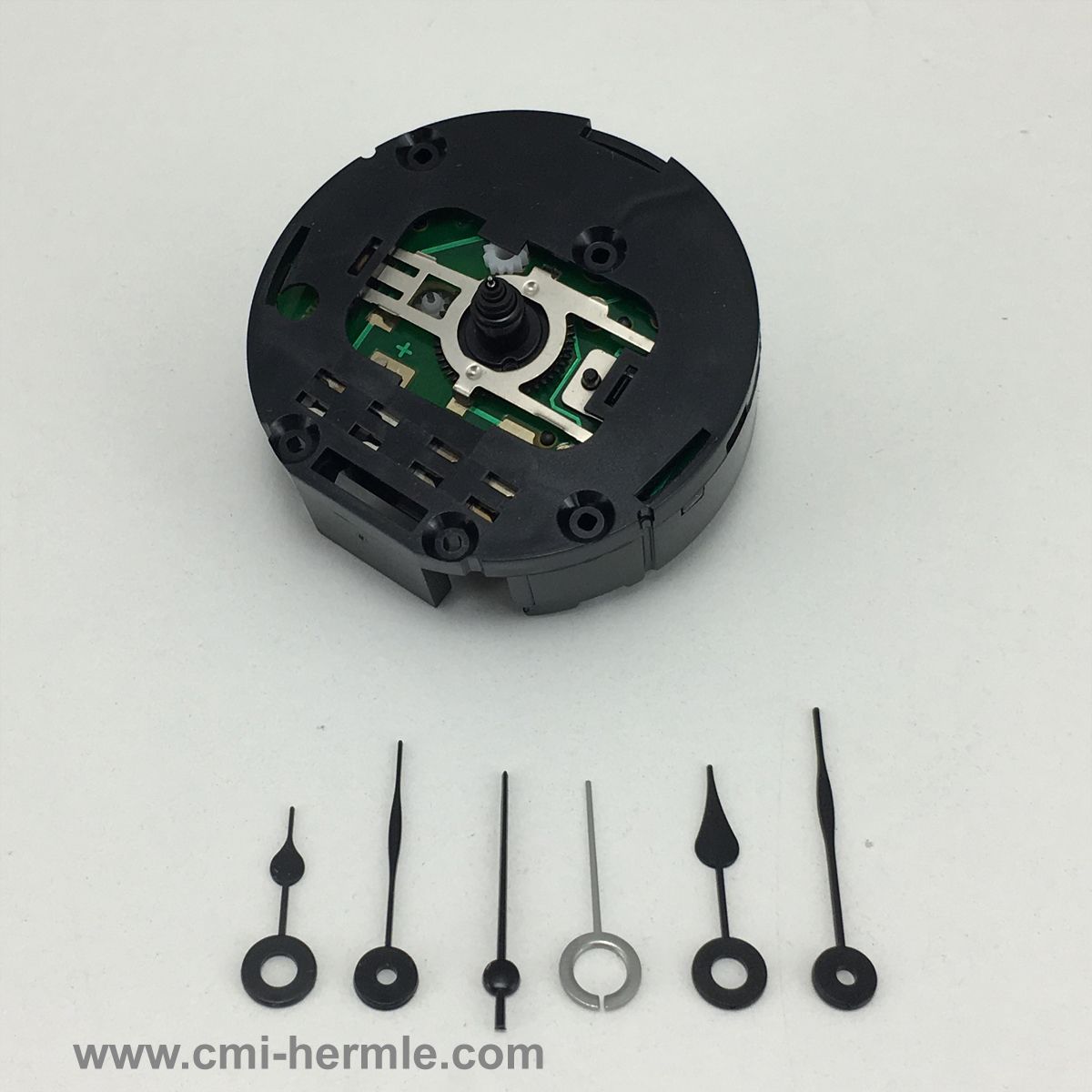

UTS Round Quartz Alarm Movement suits Dial < 4mm

Stock Code:

Q2696.10A

RRP:

$39.60

Your Price:

$39.60

Stock Level:

8 Available

Make an Enquiry

Details

Description

"UTS" Quartz

Part Number : Q2696.10A

Description : Time with Alarm Movement for Dials < 4mm.

Size : 53 mm Diameter x 17 mm Thick
Weight : 25 Grams
Material : ABS Plastics

Features : German Made, Alarm Function, Second Hand, Compact Design,
Rear Alarm Switch, Front Mounting with Self Tapping Screws

Suits : Smaller Alarm Clocks and Carriage Clock Replacements

Hand shaft is 9.7mm long total.
Max. dial thickness to trap is 4mm or less.
Spacers can be used to trap 1mm dials.
Dial hole should be minimum of 7mm

Supplied with 2 x Sizes of Hands + 1 x Alarm Hand + 1 x Second Hand

Press Fit Hands Only.
Black Spade Hands 30mm / 23mm
Black Spade Hands 25mm / 18mm
Black Second Hand 26mm
Silver Alarm hand 20mm

Takes "N" or E90 Alkaline Battery.

These Small Carriage clock hands are suitable for our UTS & Seiko carriage clock quartz movements.

Carriage Clock Hand Collet Dimensions:
Minute: Ø1.95mm
Hour: Ø3.35mm
Centre Seconds: Ø0.25mm
Alarm hand: Ø5.00mm

All clock hands are measured from collet centre to tip of minute hand.

Carriage Clock Movement Collet Dimensions:
UTS movements: Minute= Ø1.95mm, Hour = Ø3.35mm
Seiko movements: Minute = Ø1.90mm, Hour = Ø3.09mm

The hands are generic and can be adjusted to fit. The hand collets may require slots being cut for pinching (by using a piercing saw) and/or the collet can be shortened by filing.
