Rhythm Quartz Mechanical Bim Bam with Pendulum

Stock Code:
QTM.22
RRP:
$220.00
Your Price:
$220.00
Stock Level:
12 Available
Make an Enquiry

Details

Description

Quartz

Part Number : QTM.22

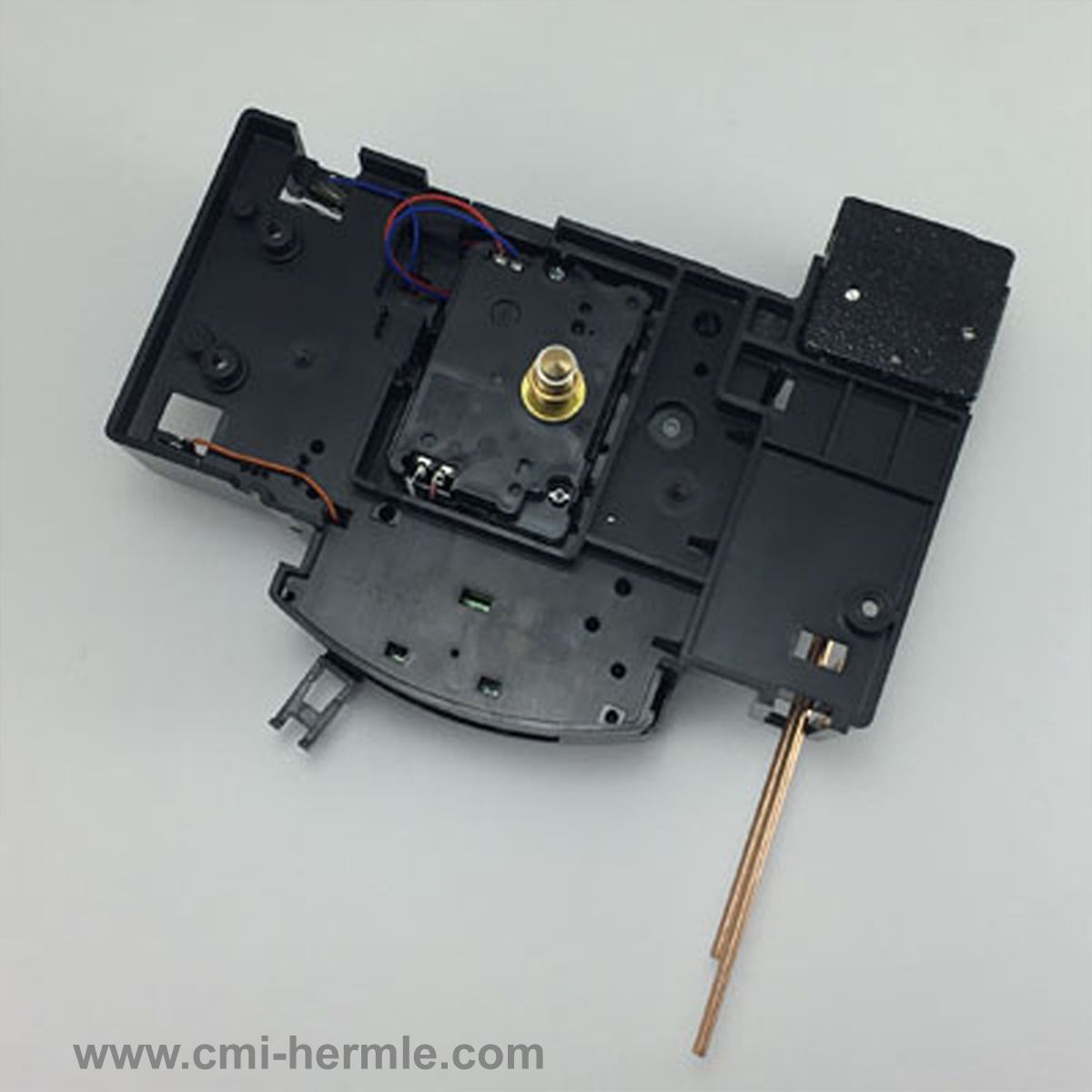

Description : Quartz Time and Pendulum Movement with Mechanical Bim Bam
(Max. Dial Thickness 10mm)
A common replacement movement for Striking Korean 31 Day Clocks.
Also for other Rythmn branded clocks.

Size : 165 mm Wide x 165 mm Wide x 50 mm Thick
Weight : 450 Grams
Material : ABS Plastic Case

Features : Time ( Hours, Minutes, Seconds )
Mechanical Bim Bam on Gong Rods
Pendulum Drive feature

Hand shaft is 22 mm long
Maximum dial thickness to trap is 10mm or less
Dial hole should be a minimum of 8mm

Uses : These Parts
Euroshaft Design Specifications
Hour hand hole bush is 5mm dia
Minute hand hole is slotted 4mm dia slotted is 3mm

Hand nut thread is metric 4mm fine with pitch of 0.5mm
Locking nut thread is metric 8mm with pitch of 0.75mm

Suits : These Parts
HQ. Euroshaft Hands
QPEND.70 Quartz Pendulum
E122.0000 Battery ( "D" or LR20 )

Notes : Programmable Chime / Time Setting Adjustment

See : Other Quartz
