Bent Flap Hinge BRASS- Fixed (pair)

Stock Code:

V.499014

RRP:

$15.40

Your Price:

$15.40

Stock Level:

667 Available

Make an Enquiry

Details

Description

Case Hardware

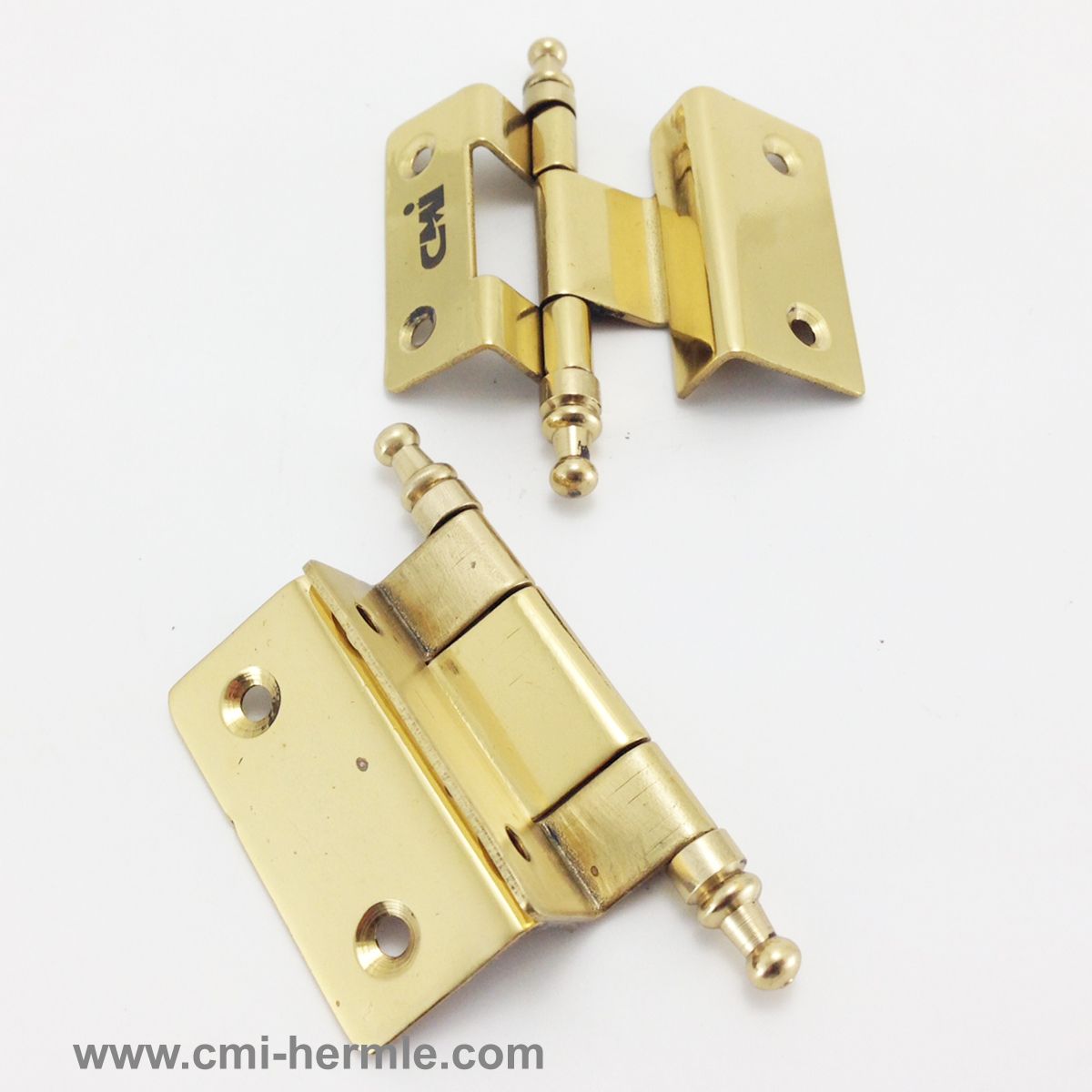

V.499014 / 40mm Brass Hinge / Offset Hinge with Finials

Offset Solid Brass Hinge with Finial ends and Countersunk Holes.

This hinge has been especially designed and made for CMI
The shape allows for the hinge to be conceled behind the door frame stile.
Only the pin hinge and finials are exposed.

Total Size : 66 mm (across Finials) x 42 mm (fully open position)
Large Flap Size : 40 mm x 19 mm x 10 mm x 1.3 mm plate ( 10 mm Throw )
Small Flap Size : 40 mm x 12 mm x 8 mm
Finial Size : 13 mm Long x 6.5 mm Max Diameter (each end)
Bar Diameter : 6.5 mm
Weight : 75 Grams

Material : Solid Brass

This Hinge opens more than 270 Degrees, when closed there is a 1 mm gap between the Flaps

Sold as a Pair.

See :
V.499005 ( 50 mm Lift Off )
V.499006 ( 75 mm Lift Off )
V.499007 ( Ball & Pin Hinge)
V.499008 ( Pin & Socket Hinge )
V.499009 ( Brass Plate Hinge )
V.499011 ( 2 inch / Finial Hinge )
V.499013 ( Lift Off / Bent Flap Hinge )
V.499014 ( Bent Flap Hinge )
V.499015 ( 1/2 inch Brass Sheet Hinge )
V.499017 ( 1 inch / Finial Hinge )
