1/2Hr Strike Chain 32cm Pendulum -Special_Order

Stock Code:

W.00241.080032

RRP:

$594.00

Your Price:

$594.00

Stock Level:

Out of Stock

Make an Enquiry

Details

Description

"Hermle" Mechanical

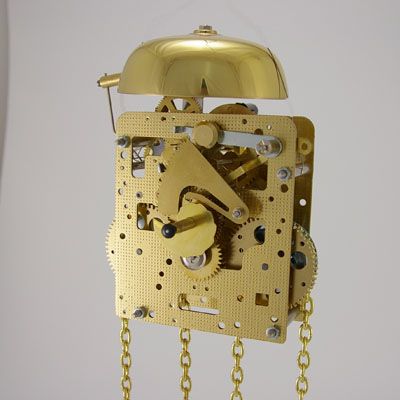

W.00241.080032 / Mechanical Clock Movement

32 cm Pendulum , 8 Day, Weight Driven, Bim Bam, Half Hour Strike Movement, Bell on Top ( 80 mm )

Plate Size : 85 mm x 98 mm x 32 mm Between Plates
Handshaft Size : 33.2 mm
Weight : 850 Grams

Materials : Brass and Brass Plated Components, Machined Steel Parts and Nickle Plated Accessories....

Features : Automatic Beat, Bell on Top

Case Requirements : The Handshaft is on the centre line of any clock ( The handshaft is not necessarily at the centre of any clock movement )
Movement Dimensions are therefore all measured from the handshaft : Down, Left, Right and Up ( including any Gong or Bell Assembly )
Depth is total depth from the tip of the Handshaft to the rear most point ( including any Gong or Bell Assembly )
The Weight Drop is Measured from the Handshaft to the Bottom of the Weight Shells after 7 Days ( Handshaft Up + Weight Drop = total length, excluding dial )

The Measurements for this Movement are :

Handshaft Down : 55.0 mm
Handshaft Left : 105.0 mm
Handshaft Right : 50.0 mm
Handshaft Up : 55.0 mm
Depth : 96.0 mm
Weight Drop : 1300.0 mm

Suits :
Handnuts E008.1202 and E008.1203 ( smaller than W.01151 )
Hands HM. series ( Except HM.08400 for W.01171 )
Suspension Spring E021.00060
Crutch E002.06810
Pendulum

See : Other Movements in this Series
W.00241.030
W.00241.033
W.00241.080
W.00241.084
