1/2Hr Strike Chain 114cm Pendulum -Special_Order

Stock Code:
W.00271.053114
RRP:
$594.00
Your Price:
$594.00
Stock Level:
Out of Stock
Make an Enquiry

Details

Description

"Hermle" Mechanical

Part Number : W.00271.053114

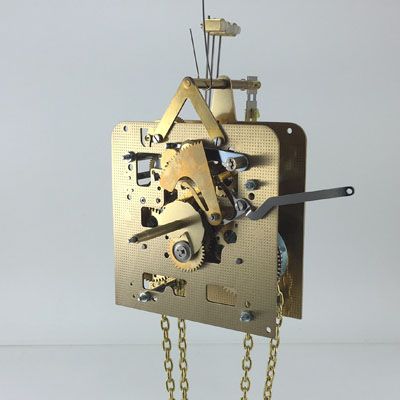

Description : 114 cm Pendulum , 8 Day, Weight Driven, Bim Bam, Half Hour Strike Movement, Hammers on Rear

Plate Size : 108 mm High x 104 mm Wide x 32 mm Between Plates
Handshaft Size : 53.2 mm
Weight : 780 Grams

Materials : Brass and Brass Plated Components, Machined Steel Parts and Nickle Plated Accessories

Features : Automatic Beat, 3 Hammers on Rear

Case Requirements : The Handshaft of the Movement sits on the Centre Line of the Clock.
Movements can be Round, Square or Rectangular with Bells, Gongs or Weights
ALL Measurments are taken from the TIP of the HANDSHAFT.

The Measurements for this Movement are :

Handshaft Left : 55.0 mm
Handshaft Right : 53.0 mm
Handshaft Up : 160.0 mm ( includes Gong Height )
Handshaft Down : 58.0 mm
Total Depth : 200.0 mm ( includes Gong Depth )
Weight Drop after 7 Days : 1300.0 mm ( includes Weights @ 264 mm )

Handshaft Up 160 mm + Weight Drop 1300 mm = Total Height 1460 mm ( excluding dial )

Keyhole Position : There are no Keyholes required for this Movement

Suits : These Parts
Handnuts E008.1202 and E008.1203
Hands HM. series ( Except HM.08400 for W.01171 )
Suspension Spring E021.02483
Crutch E002.07040
Pendulum PA.13 or PL.33
Gong 349
Weights 315 ( 2.0 Kg )

See : Other Movements in this Series
