Hermle 4/4 Westminster 45cm Series -Core Stock

Stock Code:
W.00341.021045
RRP:
$649.00
Your Price:
$649.00
Stock Level:
5 Available
Make an Enquiry

Details

Description

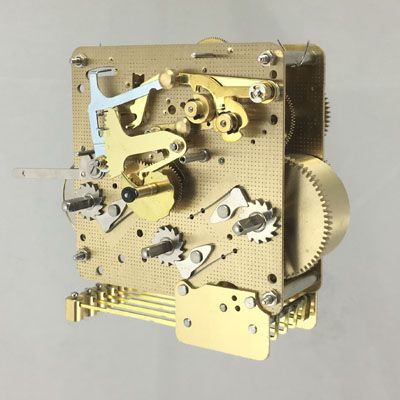

Hermle Movement W0341.021045

8 DAY SPRING WOUND WESTMINSTER
4/4 CHIME PENDULUM MOVEMENT.
** Bronze bushed movement as standard.
ANSO available on request.
5 Chime hammers under strike on bronze rod gong assembly mounted
under. 4 x rear pillars are supplied to mount the movement directly to
rear of clock case. Hand shaft length 27.6mm. Plate size 100 x 100mm.
Select hands prefixed HM.

Select Dial: 928.08 929.08
Select Pendulum: PB.57 or PG.27

The Keyhole Positions for this Movement are :

Handshaft Up : 34.2 mm ( * Not Used on this Model)
Handshaft Down 1 : 10.0 mm (to centre line of left/Right arbors)
Handshaft Down 2 : 14.20 mm (Add to above to get distance of time arbor)
Width : 81.50mm (Between Left and Right Arbor centres)

Movement Dimensions and Keyhole Positions refer page 28 of
CMI Ed15 Catalog available in the Download Section of this Website.
(refer Pendulum Specifications page 6.)
