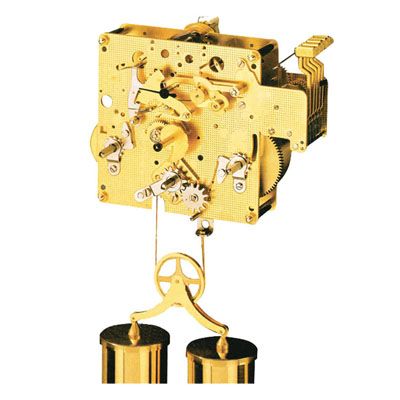

Click to Enlarge

Hermle West 4/4 Chime Movement

Stock Code:

W.00351.830066

RRP:

$880.00

Your Price:

$880.00

Stock Level:

1 Available

Make an Enquiry

Details

Description

Hermle Movement W351.830066- ONLY
CABLE SUSPENDED WEIGHT DRIVEN
WESTMINSTER 4/4 CHIME PENDULUM MOVEMENT.
Automatic Night time shut-off (last chime 9.45pm first 7.00am).
Auto chime synchronization. Auto pendulum beat adjustment.
Double hung pulley cable driven time train with spring driven chimes.
5 side chime hammers strike bronze rod chime assembly side mounted.
Second hand feature.
Handshaft length is 33.1mm measured from front plate to tip.
Plate size 120 x 120mm.

Requires other items to complete a Set for making a Clock.
2 x Polished Brass weight shells 50 x 140mm. Part #335.
2 x Cast weights @ 2.75kg for time train. Part#303
Mounting bracket, Dial, hands, fixings, oil and installation instructions.

Also:
Select Dials: 930.10 or (932.10 Second feature)
Select Pendulum: PB.60 or PG.35

The Keyhole Positions for this Movement are :

Handshaft Up : 34.2 mm ( * Not Used on this Model)
Handshaft Down 1 : 14.0 mm (to centre line of left/Right arbors)
Handshaft Down 2 : 16.0 mm (Add to above to get distance of time arbor)
Width : 93.0mm (Between Left and Right Arbor centres)

Movement Dimensions and Keyhole Positions refer page 28 of
CMI Ed15 Catalog available in the Download Section of this Website.
(refer Pendulum Specifications page 6.)
