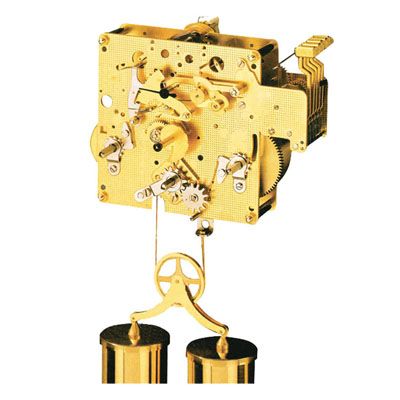

4/4 Cable G/Mother 94cm Side Strike Mvt

Stock Code:

W.00351.833094

RRP:

$880.00

Your Price:

$880.00

Stock Level:

3 Available

Make an Enquiry

Details

Description

Hermle Movement W351.833094- ONLY

94cm Pendulum Series is suitable for Grandmother Clocks.
Smallest depth Westminster 4/4 chime suit very small cases.
Maximum case width for pendulum autobeat adjustment is 250mm

Features :
CABLE SUSPENDED WEIGHT DRIVEN
WESTMINSTER 4/4 CHIME PENDULUM MOVEMENT.
Automatic Night time shut-off (last chime 9.45pm first 7.00am).
Auto chime synchronization. Auto pendulum beat adjustment.
Double hung pulley cable driven time train with spring driven chimes.
5 side chime hammers strike bronze rod chime assembly side mounted.

Case Requirements : The Handshaft is on the centre line of any clock
Movement Dimensions are therefore all measured from the handshaft.
Down, Left, Right and Up ( including any Gong or Bell Assembly )
Depth is Total Depth from the tip of the Handshaft to the rear most point.
The Weight Drop is Measured from the Handshaft to the Bottom of the Weight Shells after 7 Days.

Note that: "Handshaft Up + Weight Drop = Total Length" (excluding dial)

The Measurements for this Movement are :
Handshaft Length 53.1mm
Plate size 120 x 120mm.
Handshaft Down : 55.0 mm
Handshaft Left : 70.0 mm
Handshaft Right : 100.0 mm
Handshaft Up : 70.0 mm
Depth : 100.0 mm
Weight Drop : 640.0 mm
These Measurments include any Hammer or Bell.

Requires other items to complete a Set for making a Clock.
2 x Polished Brass weight shells 50 x 140mm. Part #335.
2 x Cast weights @ 2.75kg for time train. Part#303
Mounting bracket, Dial, hands, fixings, oil and installation instructions.

Also:
Select Dials: 703.11R or 803.11R
Select Pendulum: PL.22 or PB.86 , 87 or 88 (94cm series Pendulums)

Movement Dimensions and Keyhole Positions refer page 28 of
CMI Ed15 Catalog available in the Download Section of this Website.
(refer Pendulum Specifications page 6.)
