Hermle Polished 4/4 on Bells (11 Jewels)

Stock Code:
W.00352.070000
RRP:
$2,475.00
Your Price:
$2,475.00
Stock Level:
Out of Stock
Make an Enquiry

Details

Description

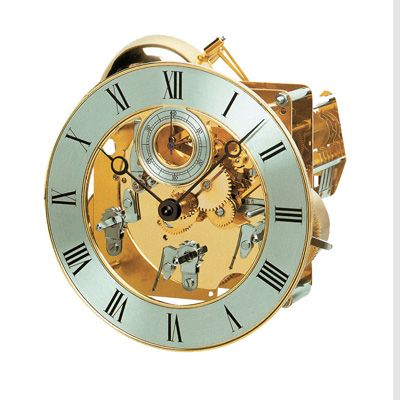

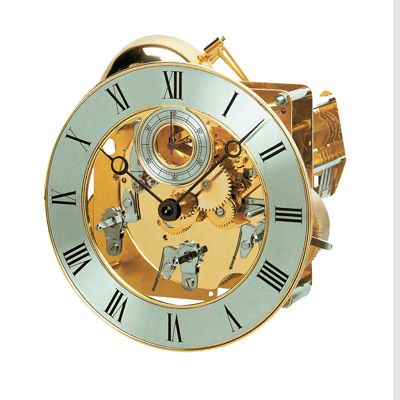

"Hermle" Mechanical

Part Number : W.00352.070

Description : 8 Day, Spring Wound, Rear Striking Westminster Chime Movement with Platform Escapement

Plate Size : 120 mm x 120 mm x 32 mm Between Plates
Handshaft Size : 33.2 mm
Weight : 1500 Grams

Materials : Polished Brass and Brass Plated Components, Machined Steel Parts and Nickle Plated Accessories

Features : 8 Day, Spring Wound Westminster Chime Movement with Second Feature.
11 Jewel Suisse Escapement. Hand Polished, Hand Assembled Movement.
Rear Mounted Chime Hammers on Brass Bells. Chime On/Off Selector
Automatic Night Time Silence Feature ( 9.45pm - 7.00am Daily)

Notes on Dimensions : The Handshaft is on the Centre Line of any Clock Case or Cabinet,
but the Movement is not Always Centred around the Position of the Handshaft.

Below is the Technical Information used to Describe this Movement.

Measurements : Taken from the Tip of the Handshaft

Handshaft Left : 90.0 mm
Handshaft Right : 80.0 mm
Handshaft Up : 100.0 mm
Handshaft Down : 55.0 mm
Mounting Depth : 145.0 mm

Keyhole Centres : Taken from the Centre of the Handshaft

Handshaft Up - Second Hand : 34.2 mm
Handshaft Down 1 - Left and Right Windings : 14.0 mm
Handshaft Down 2 - Bottom Centre Winding : 16.0 mm
Width - Left to Right Winding Positions : 93.0 mm

Uses : These Hermle Parts
Mounting Leg SET

Suits : These Hermle Parts
Handnuts E008.1202 and E008.1203
Second Hand HM.0
Hands HM.0

Notes : The Time Ring included with this Movement is 160mm Diameter

See : Other Clock Movements
