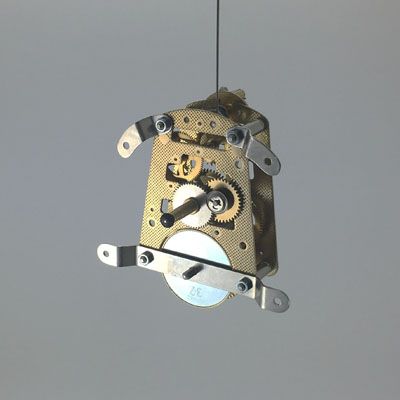

Non-Chime pendulum mov suits plan 941

Stock Code:

W.00771.001055

RRP:

$220.00

Your Price:

$220.00

Stock Level:

3 Available

Make an Enquiry

Details

Description

"Hermle" Mechanical

W.00771.001055 / Mechanical Clock Movement

55 cm Pendulum, 8 Day, Spring Wound, Time Only Movement

Plate Size : 58.5 mm x 75.5 mm (20mm Between Plates)
Handshaft Size : 25.7 mm
Weight : 220 Grams

Materials : Brass and Brass Plated Components, Machined Steel Parts and Nickle Plated Accessories....

Features : Automatic Beat Adjustment, 4 Front Mounting Legs, 55cm Pendulum Series

Case Requirements : The Handshaft is on the centre line of any clock. The handshaft is not necessarily at the centre of any clock movement.
Movement Dimensions are all measured from the handshaft : Down, Left, Right and Up ( including any Gong or Bell Assembly )
Depth is total depth from the tip of the Handshaft to the rear most point ( including any Gong or Bell Assembly )
The Weight Drop is Measured from the Handshaft to the Bottom of the Weight Shells after 7 Days ( Handshaft Up + Weight Drop = total length, excluding dial )

The Measurements for this Movement are :

Handshaft Down : 55.0 mm
Handshaft Left : 40.0 mm
Handshaft Right : 40.0 mm
Handshaft Up : 45.0 mm
Depth : 80.0 mm
Weight Drop : * Not Used on this Model

Keyhole Position : The Handshaft is on the centre line of any clock
Keyhole positions are all measured from the Handshaft : Up, Down 1, Down 2 and Wide ( All Measurements are Hole Centres )
Up is to the Second Hand Feature ( Seconds ) on the Centre Line above the Handshaft * THIS MODEL DOES NOT USE A SECOND FEATURE
Down 1 is to the Time/Chime and Strike Winding Positions on the left and right of the Centre Line * MODELS WITH 2 or 3 WINDING BARRELS
Down 2 is to the Time Winding Position also on the Centre Line but below the Handshaft * MODELS WITH 3 WINDING BARRELS
Width is the distance between the Time/Chime and Strike Winding Positions ( described as Down 2 )

The Keyhole Positions for this Movement are :

Handshaft Up : * Not Used on this Model
Handshaft Down 1 : 31.0 mm
Handshaft Down 2 : * Not Used on this Model
Width : * Not Used on this Model

Suits :
Handnuts E008.1202 and E008.1203
Hands HM. series ( Except HM.08400 )
Suspension Spring E021.01000
Crutch B026.00710
Pendulum B026.02490 & 188 ( PG.56 ) Sold Seperatly
Barrels B013.90320 ( Time )

See : Other Movements in this Series
W.00771.001018
W.00771.001039
W.00771.001055
