Hermle Spring Passing Strike -Set

Stock Code:
W.00791.081165
RRP:
$693.00
Your Price:
$693.00
Stock Level:
5 Available
Make an Enquiry

Details

Description

"Hermle" Mechanical - **CORE RANGE**

Part Number : W.00791.081165

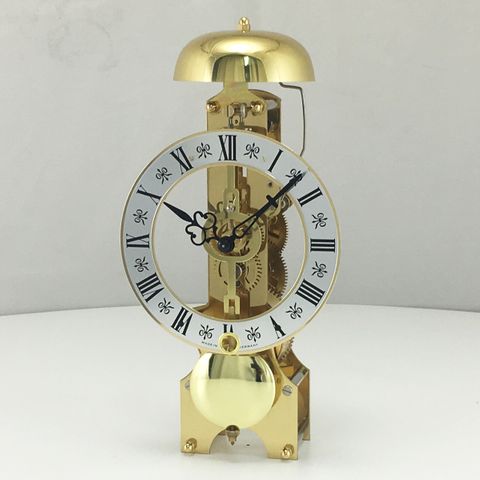

Description : 16.5 cm Pendulum, 14 Day, Spring Wound, Passing Strike Movement with Front Mounted Pendulum
Complete with 108mm Diameter Chapter Ring and Hands

Plate Size : 220 mm High x 60 mm Wide x 32 mm Between Plates
Handshaft Size : 27.6 mm
Weight : 600 Grams

Materials : Polished Brass and Brass Plated Components, Machined Steel Parts and Nickle Plated Accessories

Features : 14 Day, Spring Wound, Passing Strike Movement with Front Mounted Pendulum.
Hand Polished, Hand Assembled, Top Mounted Chime Hammer on Brass Bell.
16.5 Cm Pendulum Series

Notes on Dimensions : The Handshaft is on the Centre Line of any Clock Case or Cabinet,
but the Handhshaft is not always at the Centre of the Mechanical Movement.

Below is the Technical Information used to Describe this Movement.

Measurements : Taken from the Tip of the Handshaft

Handshaft Left : 54.0 mm
Handshaft Right : 54.0 mm
Handshaft Up : 110.0 mm
Handshaft Down : 110.0 mm
Depth : 95.0 mm

Keyhole Centres : Taken from the Centre of the Handshaft

Handshaft Down 2 - Bottom Centre Winding : 49.2 mm

Uses : These Hermle Parts
E006.XXXX Movement Fixing Screw

Suits : These Hermle Parts
Handnuts E008.1202
Hands HM.05390
Hands HM.14426
Suspension Spring E021.00060
Crutch E002.04880
Pendulum B021.00140
Barrel B013.90100 ( Time )

Glass Cover E260.004601
Glass Dome E260.02430

Notes :

See : Other Clock Movements
