Time Only Movement 33cm 8 day

Stock Code:
W.00885.003033
RRP:
$99.00
Your Price:
$99.00
Stock Level:
1 Available
Make an Enquiry

Details

Description

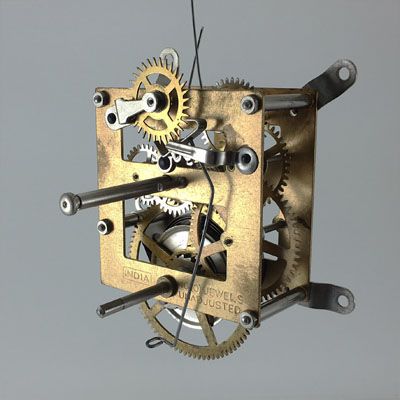

Replacement Mechanical Movement

W.00885.003033 / Mechanical Clock Movement

Replacement Movement for Early "Kitchen Clock" or "Ansonia Style" Movement.
33 cm Pendulum or 13 inch drop (measured from the handshaft center to bottom of Pendulum)
8 Day, Spring Wound Movement, Time Only.
Verge Escapement.
Rear mounting feet.
This Movement is supplied with 2 sizes of hands and 1 winding key.
Hands are 3 3/4" - 5 1/4" (135/95mm) and 2 1/4" - 1 3/4" (55/43mm)

* Pendulum is not Supplied with Movement.

Plate Size : 83 mm x 85 mm x 36 mm Between Plates
Handshaft Size : 52 mm (measured from front plate)
The Keyhole Positions for this Movement are :
Handshaft Center down to Arbor Center: 43 mm
Winding Arbor protrudes 38mm long from front plate.
4mm Square uses No.7 key
Crutch total length 180mm (35mm Feather)

Weight : 500 Grams
Materials : Brass and Brass Plated Components, Machined Steel Parts and Nickle Plated Accessories

Manufacturer: India

Case Requirements : The Handshaft is on the centre line of any clock ( The handshaft is not necessarily at the centre of any clock movement )
Movement Dimensions are therefore all measured from the handshaft : Down, Left, Right and Up ( including any Gong or Bell Assembly )
Depth is total depth from the tip of the Handshaft to the rear most point ( including any Gong or Bell Assembly )
The Weight Drop is Measured from the Handshaft to the Bottom of the Weight Shells after 7 Days ( Handshaft Up + Weight Drop = total length, excluding dial )

The Measurements for this Movement are :

Handshaft Down : 80.0 mm
Handshaft Left : 60.0 mm
Handshaft Right : 60.0 mm
Handshaft Up : 55.0 mm
Depth : 95.0 mm

(Rough Dimensions : 135 mm High x 120mm Wide x 95mm Deep.)

NOTES:
Handnut used to attach Minute hand.
Hands with Hour hand bush is 5.6 mm dia / Minute hand bush is 3.5 mm square
Pendulum B021.01066 Ornate Brass or B021.01160 Plain Brass (Pendulums not supplied)

See : Other Movements in this Series
W.00884.001023 (23.cm/ Spiral Gong)
W.00885.003033 (33cm/Time Only)
W.00886.005011.5 (11.5cm/Spiral Gong)
