Hermle Triple Chime Spring Wound 4/4

Stock Code:
W.01050.020
RRP:
$990.00
Your Price:
$990.00
Stock Level:
4 Available
Make an Enquiry

Details

Description

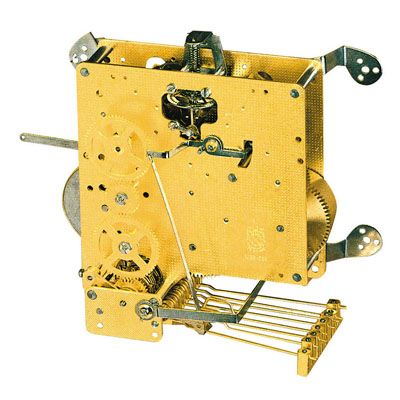

Hermle Movement W01050.020- ONLY

FLOATING BALANCE 8 DAY SPRING WOUND
TRIPLE CHIME MOVEMENT.
Westminster / St Michaels / Whittington.
Eight chime hammers strike on a (8) bronze rod Gong Assembly
mounted underneath the movement with longest rod 200mm.
Handshaft length 33.1mm. Plate size 120 x 120mm.
Fitted with four front mounting brackets.

The Keyhole Positions for this Movement are :

Handshaft Up : 34.2 mm ( * Not Used on this Model)
Handshaft Down 1 : 14.0 mm (to centre line of left/Right arbors)
Handshaft Down 2 : 16.0 mm (Add to above to get distance of time arbor)
Width : 93.0mm (Between Left and Right Arbor centres)


Also:
Select Dials:

Movement Dimensions and Keyhole Positions refer page 28 of
CMI Ed15 Catalog available in the Download Section of this Website.
(refer Pendulum Specifications page 6.)
