Hermle Triple Chime 114cm Chain D9 -Core Stock

Stock Code:
W.01161.053114
RRP:
$880.00
Your Price:
$880.00
Stock Level:
Out of Stock
Make an Enquiry

Details

Description

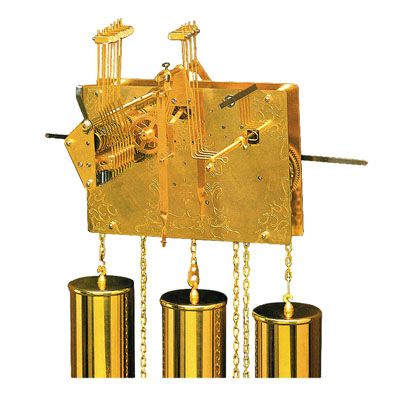

Hermle Movement W1161.053114
CHAIN SUSPENDED WEIGHT DRIVEN
TRIPLE 4/4 CHIME PENDULUM MOVEMENT.
Westminster St Michaels Whittington.
Automatic Night time shut-off (last chime 9.45pm first 7.00am)
Auto pendulum beat adjustment and chime synchronization.
Hand shaft length 53.1mm. Plate size 200 x 140mm.
12 x rear hammers strike steel rod chime assembly rear mounted.
3 x Polished Brass weight shells 60 x 245mm. 3 x cast weights.
1@ 4.50kg quarters chime. 2@ 2.50kg hour strike and time train.
Complete with black serpentine hands, brass chains, all fittings,
fixings, clock oil and instructions.

Select Dial: 601.12 Tempus Fugit 280 x 280 x 375mm
504.12 Moving Moon 280 x 280 x 395mm
Select Pendulum: PA.13 PL.30 PL.33 PL.34 PL.35 PL.36
PL.37 PL.38 PL.39 PL.40 PL.41 PL.42

Note. All decorative weight shells can be used with this movement.

Movement Dimensions and Keyhole Positions refer page 28 of
CMI Ed15 Catalog available in the Download Section of this Website.
(refer Pendulum Specifications page 6.)
