Hermle Triple Chime 114cm Cable D9 -Core Stock

Stock Code:

W.01161.853114

RRP:

$990.00

Your Price:

$990.00

Stock Level:

7 Available

Make an Enquiry

Details

Description

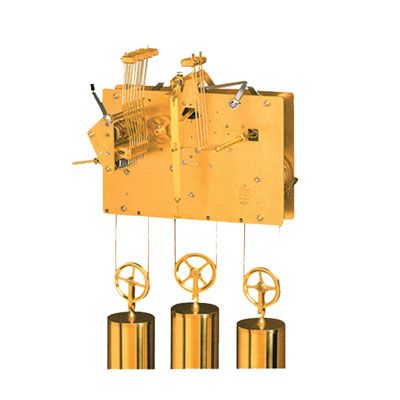

Hermle Movement W1161.853114 - ONLY
CABLE SUSPENDED WEIGHT DRIVEN
TRIPLE 4/4 CHIME PENDULUM MOVEMENT.
Westminster St Michaels Whittington.
With Eccentric Secondhand.
Automatic Night time shut-off (last chime 9.45pm first 7.00am)
Auto pendulum beat adjustment and chime synchronization.
Hand shaft length 53.1mm. Plate size 200 x 140mm.
12 x rear hammers strike steel rod chime assembly rear mounted.
3 x Polished Brass weight shells 60 x 245mm. 3 x cast weights.
1@ 4.50kg for quarters. 2@ 3.50kg for the hour strike and time train.
Complete with black serpentine hands,cable pulleys, all fittings,
fixings,clock oil and instructions.

Requires other items to complete a Set for making a Clock.
3 x Polished Brass weight shells 60 x 245mm. Part# 322
3 x cast weights. Part# 319 and #304
1@ 4.50kg for quarters. 2@ 3.50kg for the hour strike and time train.
Select Hands: HM.08420 - Black Serpentine.

Select Dial: 509.13 Moon Dial 280 x 280 x 395mm
934.13 Round Dial 300mm dia
Select Pendulum: PA.13 PL.30 PL.33 PL.34 PL.35 PL.36
PL.37 PL.38 PL.39 PL.40 PL.41 PL.42

Suits HB Design Plans: 905, 906

Note. All decorative weight shells can be used with this movement.

Movement Dimensions and Keyhole Positions refer page 28 of
CMI Ed15 Catalog available in the Download Section of this Website.
(refer Pendulum Specifications page 6.)
