Hermle Triple Chime Tubular 114cm Cable (Jewelled)

Stock Code:
W.01171.890114
RRP:
$3,300.00
Your Price:
$3,300.00
Stock Level:
1 Available
Make an Enquiry

Details

Description

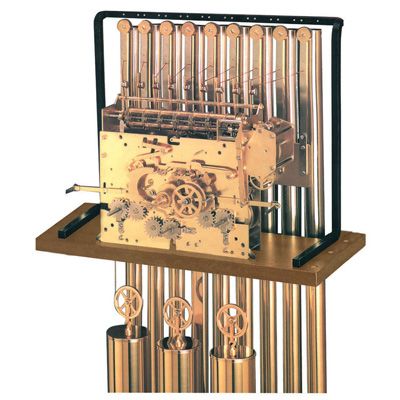

Hermle Triple Tubular Chime (Jewelled) - MOVEMENT ONLY

Hermle Movement W1171.890114
CABLE SUSPENDED WEIGHT DRIVEN. EIGHT JEWEL
9 TUBE TRIPLE 4/4 TUBULAR CHIME HEAVY DUTY PENDULUM MOVEMENT.
Westminster St Michaels Whittington

Eccentric Second Hand Handshaft length 55.5mm - Plate size 220 x 152mm
Automatic Night time shut-off (last chime 9.45pm first 7.00am) Automatic pendulum beat adjustment.
Automatic chime synchronization. Heavy side plates. Power reserve.
Locking gears to prevent over winding and or run off cables.
Features 9 Rear hammers which strike on 9 polished brass tubes mounted to supporting frame.(Tubes Not supplied)
Comes mounted to timber shelf with steel frame for suspending the brass tubes.
Complete with cable pulleys, fittings, fixings, clock oil and instructions.

Other Items Required to make a Set.

3 Brass weight shells 60 x 278mm polished- items #331 Plain or #332 Etched.
3 Weights. 1@ 8.40kg for quarters. 1 each @ 3.50kg for hour strike and time train.

Select Dial: 509.15 523.15 527.15 934.15 (300mm Round Dial) 950.15R (Chrome 300mm Round Dial)
Select Pendulum: PA.13 PL.33 PL.34 PL.35 PL.36 PL.50(Chrome)
Select Weight Shells: 331-Polished Brass 332-Etched finish 333-Engraved finish (Sorry no Chrome at this time)


Note. This movement requires weight shell size of 60 x 278mm and the only
decorative weight shell available is 332 with an engraved finish.
All other decorative weight shells are only 60 x 245mm and are not
suitable for this movement.

Movement Dimensions and Keyhole Positions refer page 28 of
CMI Ed15 Catalog available in the Download Section of this Website.
(refer Pendulum Specifications page 6.)
