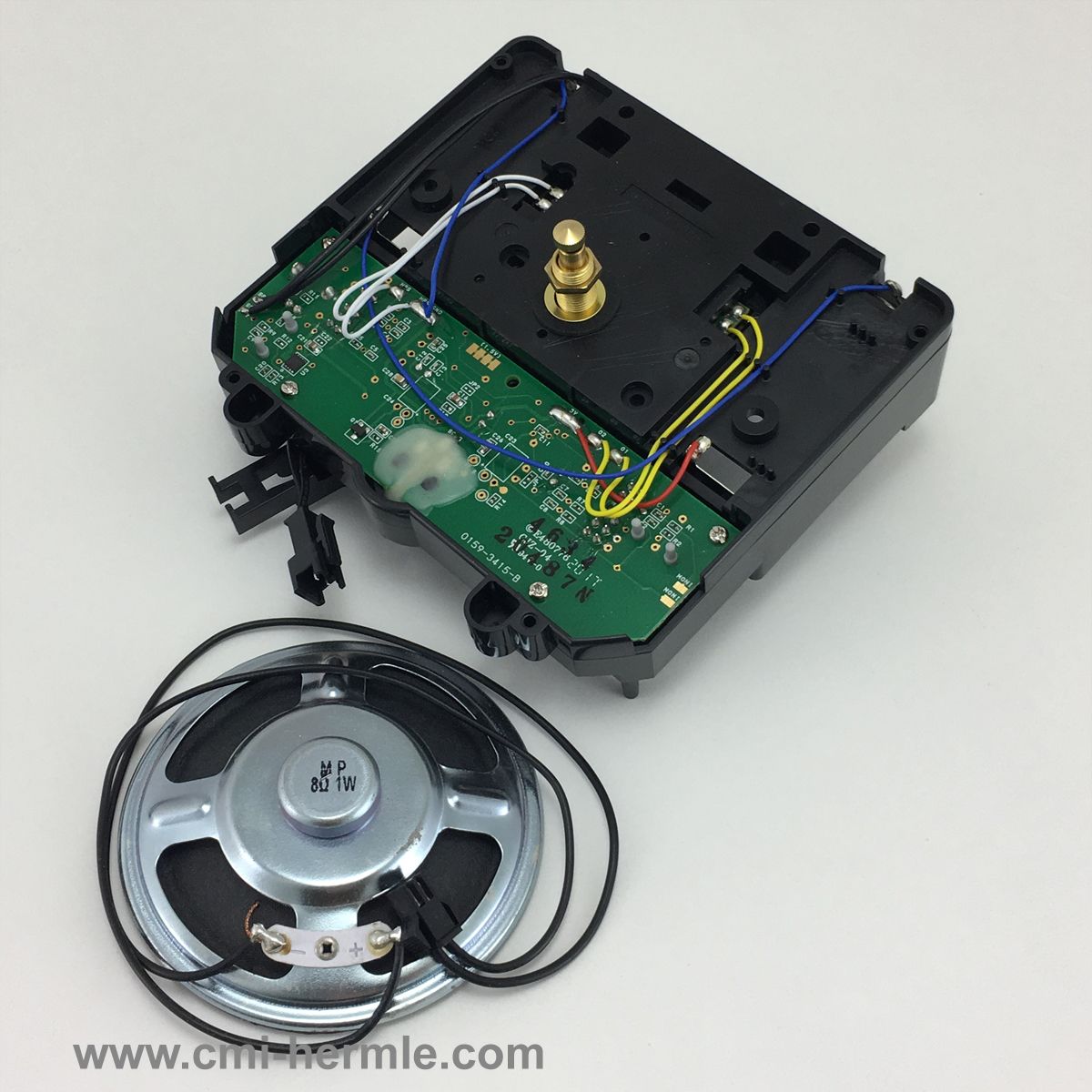

Rhythm Quad Chime with Pendulum

Stock Code:
QTCP.RHY25
RRP:
$165.00
Your Price:
$165.00
Stock Level:
10 Available
Make an Enquiry

Details

Description

Quartz

Part Number : QTC.RHY25

Description : Quartz Time, Quad Chime and Pendulum
Movement 22mm
(Max. Dial Thickness 10mm)

Size : 120 mm Wide x 110 mm Wide x 30 mm Thick
Weight : 165 Grams
Material : ABS Plastic Case

Features : Time ( Hours, Minutes, Seconds )
Volume control, Automatic night silencing feature,
Westminster, Ave Maria, Whittington and Bim Bam
Pendulum Drive feature

Hand shaft is 25 mm long
Maximum dial thickness to trap is 10mm or less
Dial hole should be a minimum of 8mm

Uses : These Parts
Euroshaft Design Specifications
Hour hand hole bush is 5mm dia
Minute hand hole is slotted 4mm dia slotted is 3mm

Hand nut thread is metric 4mm fine with pitch of 0.5mm
Locking nut thread is metric 8mm with pitch of 0.75mm

Suits : These Parts purchased separately
HQ. -Quartz Hands -Euroshaft slotted minute style.
QPEND.90-Rhythm -Quartz Pendulum
E122.0000 Battery ( "C" or LR14 )

Notes : Hands purchased separately

See : Other Quartz
