Seiko Quartz Dual Chime Non-Pend suit Dials < 16mm

Stock Code:
QTC.SEIKO-L
RRP:
$137.50
Your Price:
$137.50
Stock Level:
54 Available
Make an Enquiry

Details

Description

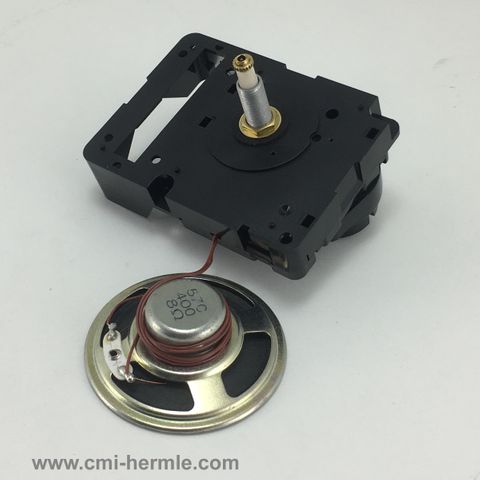

"Seiko: Quartz (Long Shaft)

Part Number : QTC.SEIKO-L

Description : Quartz Time and Chime Movement
(Max. Dial Thickness 16mm)

Size : 85 mm Wide x 65 mm Wide x 35 mm Thick
Weight : 90 Grams
Material : ABS Plastic Case

Features : Time ( Hours, Minutes, Seconds )
Volume control, Automatic night silencing feature,
Westminster or Whittington chimes feature

Hand shaft is 28 mm long
Maximum dial thickness to trap is 16mm or less
Dial hole should be a minimum of 8mm

Uses : These Parts
Euroshaft Design Specifications
Hour hand hole bush is 5mm dia
Minute hand hole is slotted 4mm dia slotted is 3mm

Hand nut thread is metric 4mm fine with pitch of 0.5mm
Locking nut thread is metric 8mm with pitch of 0.75mm

Suits : These Parts
HQ. Euroshaft Hands
E122.0000 Battery ( "C" or LR14 )

Notes : Hands purchased separately

See : Other Quartz
