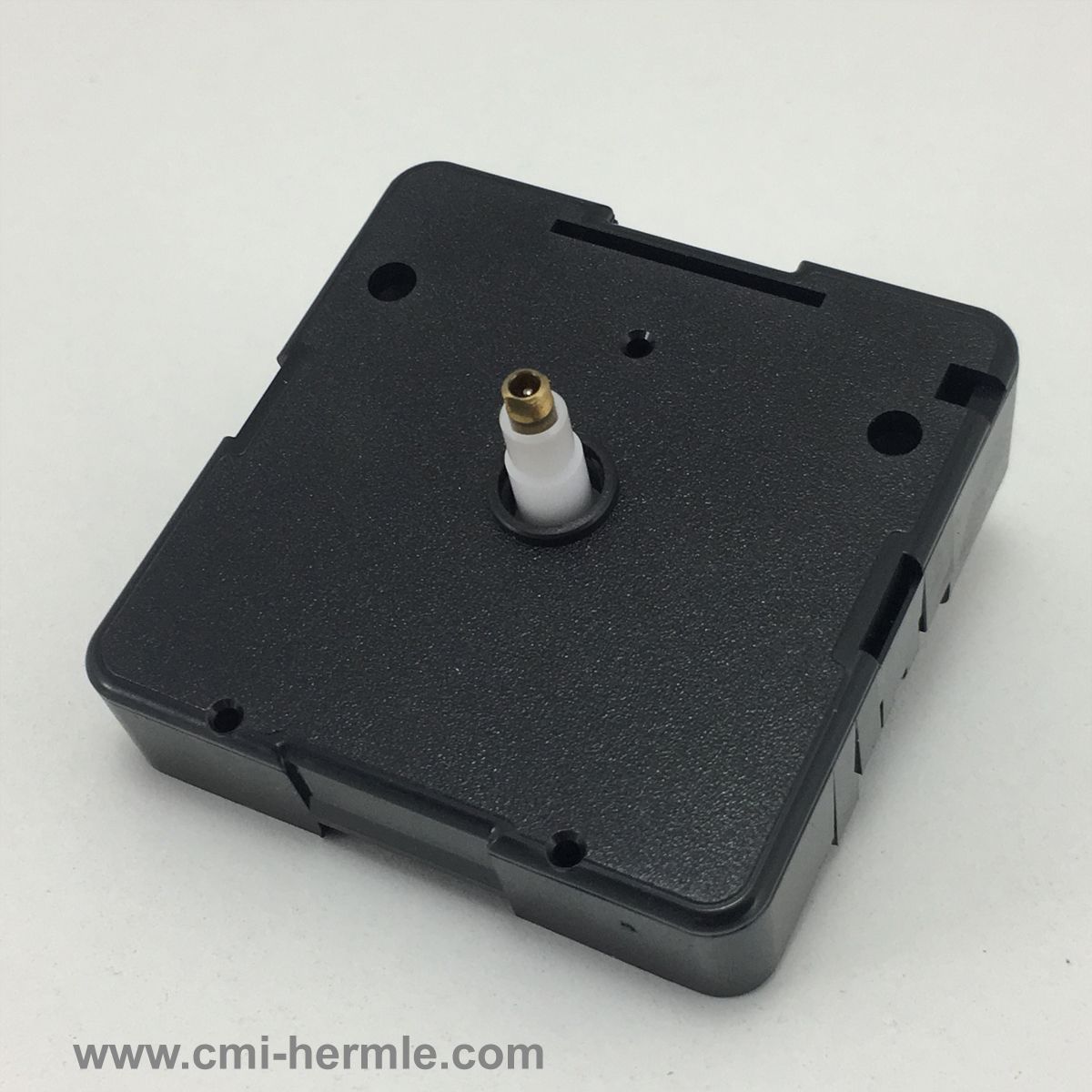

UTS Quartz Clock Movement 13mm Shaft suits Dial 1-3mm

Stock Code:
Q2800.13
RRP:
$16.50
Your Price:
$16.50
Stock Level:
133 Available
Make an Enquiry

Details

Description

"UTS" Quartz

Part Number : Q2800.13

Description : Quartz Time only Movement 13 mm
(Max. Dial Thickness 3 mm)

Size : 56 mm Wide x 56 mm Wide x 17 mm Thick
Weight : 35 Grams
Material : ABS Plastic Case

Features : Time ( Hours, Minutes, Seconds )
Hand shaft is 13 mm long
Maximum dial thickness to trap is 3 mm or less
Dial hole should be a minimum of 10 mm


Uses : These Parts
Euroshaft Design Specifications
Hour hand hole bush is 5mm dia
Minute hand hole is slotted 4mm dia slotted width is 3mm
Second Hand feature pin shaft size: 0.80mm

Hand nut thread is metric 3.5mm with pitch of 0.35mm
Locking nut thread is metric 8mm with pitch of 0.75mm

Suits : These Parts
E122.0000 Battery ( "AA" or LR6 )
HQ. Euroshaft Hands
Q2800.011xx Fixing Collar

Notes : Hands purchased separately
