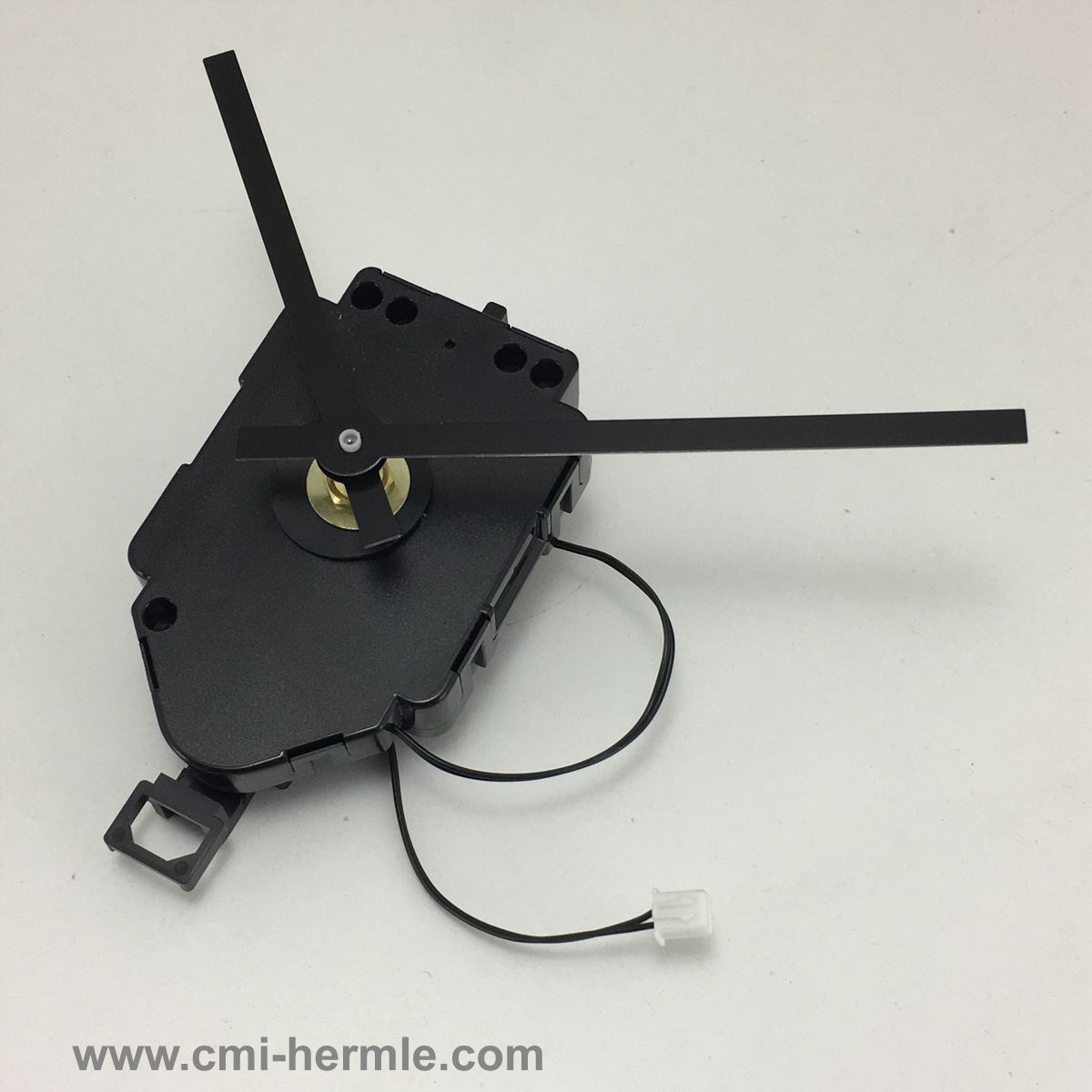

Quartz Pendulum Trigger Movement for dials<6mm

Stock Code:
QTP.TM16
RRP:
$49.50
Your Price:
$49.50
Stock Level:
21 Available
Make an Enquiry

Details

Description

Press Fit Quartz

Part Number : QTP.TM16

Description : Press Fit Quartz Time and Pendulum. Trigger Movement 16 mm
(Max. Dial Thickness 6 mm)

Size : 96 mm Wide x 56 mm Wide x 21 mm Thick
Weight : 50 Grams
Material : ABS Plastic Case

Features : Time ( Hours, Minutes, Seconds )
Creates Electric Pulse on the Hour (Trigger)
Pendulum Feature
Hand shaft is 16 mm long
Maximum dial thickness to trap is 6 mm or less
Dial hole should be a minimum of 8 mm
Lead wires are 200 mm long

Uses : These Parts
Press Fit Design Specifications
Hour hand hole bush is 5 mm dia
Minute hand hole bush is 3.2 mm dia

Locking nut thread is metric 8mm with pitch of 0.75mm

Suits : These Parts
Press Fit Hands
E122.0000 Battery ( "AA" or LR6 )
QPEND. Quartz Pendulum

Notes : Press Fit Hands 97mm / 76mm included
( No Other Hand Options Available)

See : Other Quartz
