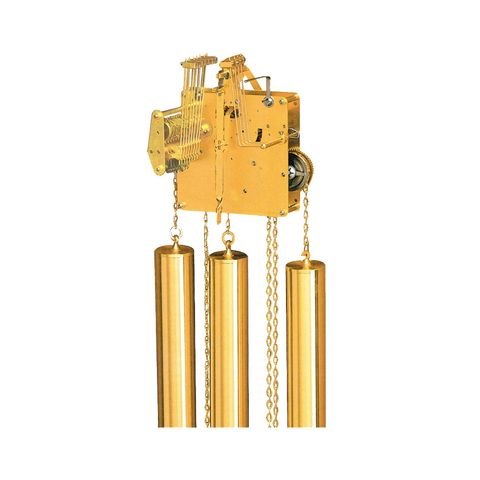

Hermle Triple Chime 94cm Chain with Seconds

Stock Code:

W.01151.053094.HS

RRP:

$990.00

Your Price:

$990.00

Stock Level:

2 Available

Make an Enquiry

Details

Description

Hermle Movement W1151.053094.HS - ONLY

NOTE:
This model has a Seconds hand feature.
This model has a longer rear Pendulum Post.
Hammers will require further adjustment to suit gong rods depending on the plan used.

CHAIN SUSPENDED WEIGHT DRIVEN
TRIPLE 4/4 CHIME PENDULUM MOVEMENT
Westminster / St Michaels / Whittington melodies.
Automatic Night Time shut-off. (last chime 9.45pm first chime 7.00am)
Auto chime synchronization. Auto pendulum beat adjustment.
12 rear chime hammers strike steel rod chime assembly mounted to
rear of clock case.

Handshaft length is 53.1mm.
Plate size is 120 x 120mm.
Distance between the plates is 32mm.
Complete with brass chains all fittings, fixings, sml clock oil and installations instructions.

Requires other items to complete a Set for making a Clock.
1 x 344 Westminster gong 510mm longest rod.
3 x Polished Brass weight shells 40 x 264mm.Part# 328
3 x weights. Parts# 315 & 310
1@ 3.30kg for quarter chimes and 2@ 2.00kg, one each hour strike, chime and time train.

Also:
Select Dials: 703.11 Tempus Fugit 250 x 250 x 330mm or
803.11 Moving Moon 250 x 250 x 330mm
Select Pendulum: PB.86 PB.88 PB.89 PL.20 or PL.22
Select Hands: HM.08170 -Black Serpentine

Suits HB Design Plans: 912, 917, 918, 919

Movement Dimensions and Keyhole Positions refer page 28 of
CMI Ed15 Catalog available in the Download Section of this Website.
(refer Pendulum Specifications page 6.)
