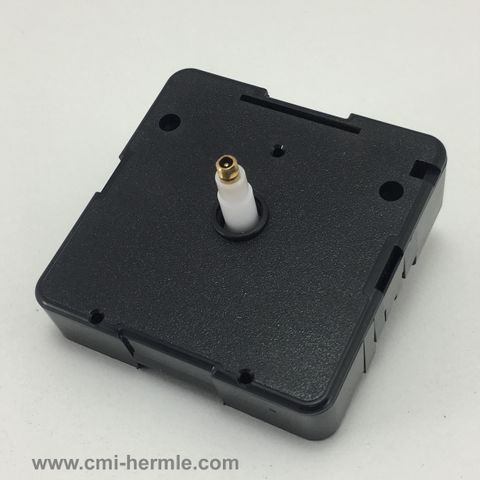

UTS Quartz High Torque Movement 16mm Shaft suits Dial 3-6mm

Stock Code:
Q2801.16HT
RRP:
$33.00
Your Price:
$33.00
Stock Level:
109 Available
Make an Enquiry

Details

Description

"UTS" Quartz

Part Number : Q2800.16HT

Description : HIGH TORQUE Quartz Time only Movement 16 mm
(Max. Dial Thickness 6 mm)

Size : 56 mm Wide x 56 mm Wide x 17 mm Thick
Weight : 35 Grams
Material : ABS Plastic Case

Features : HIGH TORQUE TIME ( Hours, Minutes, Seconds )
Hand shaft is 16 mm long
Maximum dial thickness to trap is 6 mm or less
Dial hole should be a minimum of 10 mm


Uses : These Parts
Euroshaft Design Specifications
Hour hand hole bush is 5mm dia
Minute hand hole is slotted 4mm dia slotted width is 3mm
Second Hand feature pin shaft size: 0.80mm

Hand nut thread is metric 3.5mm with pitch of 0.35mm
Locking nut thread is metric 8mm with pitch of 0.75mm

Suits : These Parts
E122.0000 Battery ( "AA" or LR6 )
HQ. Euroshaft Hands
Q2800.011xx Fixing Collar

Notes : Hands purchased separately

See : Other Quartz
