UTS Quartz Chiming Pendulum Movement suits Dial 3-6mm

Stock Code:
Q2812.16
RRP:
$137.50
Your Price:
$137.50
Stock Level:
13 Available
Make an Enquiry

Details

Description

"UTS" Quartz

Part Number : Q2812.16

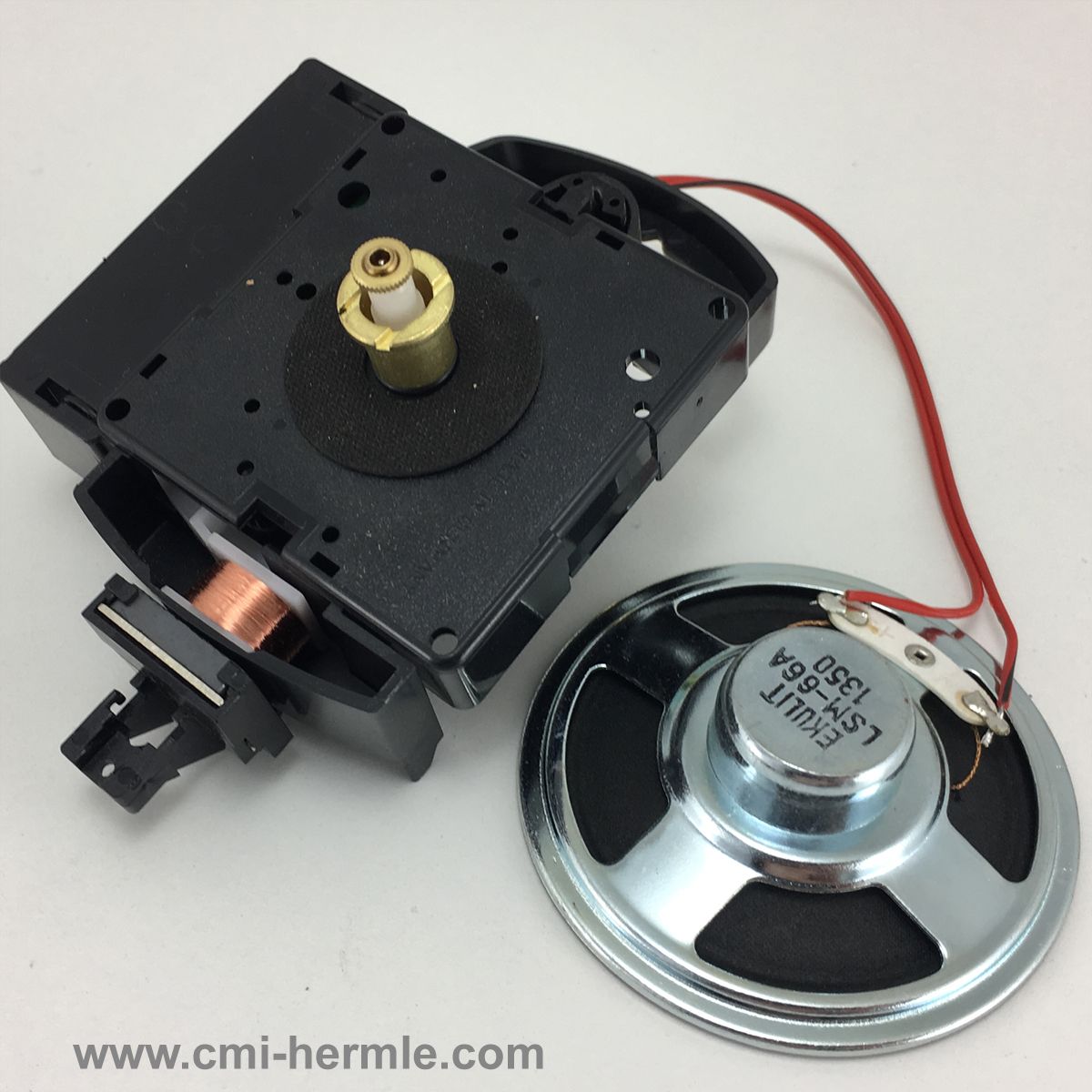

Description : Quartz Time, Chime and Pendulum Movement 16 mm
(Max. Dial Thickness 10 mm)

Size : 105 mm High x 72 mm Wide x 28 mm Thick ( 66mm Diameter Speaker )
Weight : 115 Grams
Material : ABS Plastic Case

Features : Time ( Hours, Minutes, Seconds )
Hand shaft is 16 mm long
Maximum dial thickness to trap is 10 mm or less
Dial hole should be a minimum of 10 mm


Westminster or Bim Bam Melodies
Selectable auto night features
Volume settings ( Hi / Low / Off )

Uses : These Parts
Euroshaft Design Specifications
Hour hand hole bush is 5mm dia
Minute hand hole is slotted 4mm dia slotted width is 3mm
Second Hand feature pin shaft size: 0.80mm

Hand nut thread is metric 3.5mm with pitch of 0.35mm
Locking nut thread is metric 8mm with pitch of 0.75mm

Suits : These Parts
E122.00001 Battery ( "AA" or LR6 ) x1 Powered Pendulum
HQ. Euroshaft Hands
PG.32 Quartz Pendulum
Q2800.011xx Fixing Collar

Notes : Hands purchased separately
