Urgos Movement -Special Order(US)

Stock Code:
W.000UW66020
RRP:
$2,200.00
Your Price:
$2,200.00
Stock Level:
Out of Stock
Make an Enquiry

Details

Description

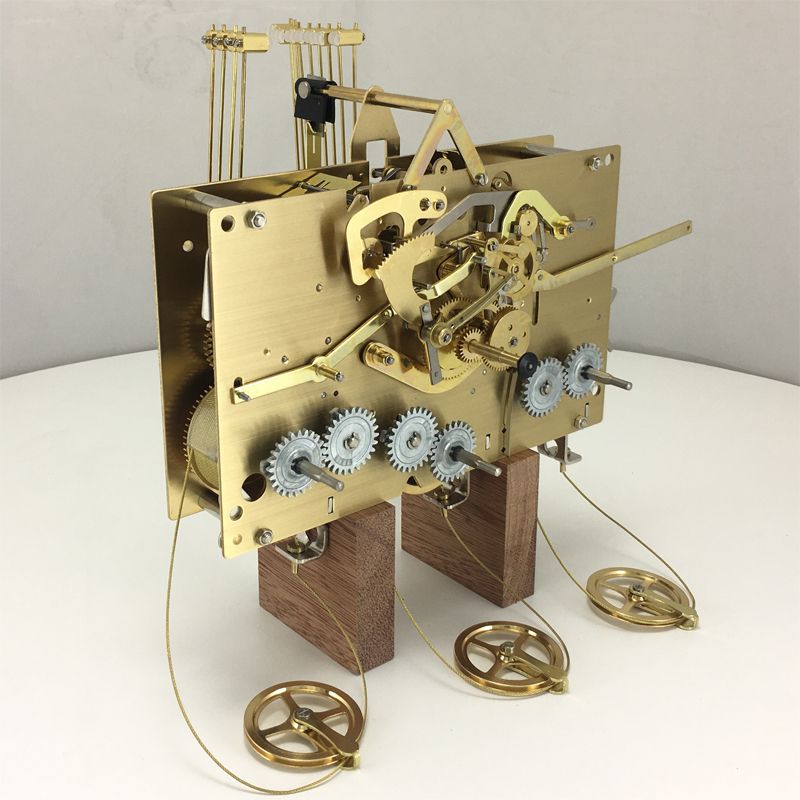

"Urgos" Mechanical

Part Number : W.000UW66020

Description : 8 Day, Cable Drive, Rear Striking Triple Chime Movement

Plate Size : 210 mm x 130 mm x 37 mm Between Plates
Handshaft Size : 49 mm
Weight : 2300 Grams

Materials : Brass and Brass Plated Components, Machined Steel Parts and Nickle Plated Accessories

Features : 8 Day, Cable Drive, Triple Chime Movement, with Second Hand
Rear Striking Hammers on Gongs, Automatic Pendulum Beat,
Automatic Chime Synchronization, Chime On/Off Selection
Automatic Night Time Silence Feature


Notes on Dimensions : The Handshaft is on the Centre Line of any Clock Case or Cabinet,
but the Handhshaft is not always at the Centre of the Mechanical Movement.

Below is the Technical Information used to Describe this Movement.

Measurements : Taken from the Tip of the Handshaft

Handshaft Left : 105.0 mm
Handshaft Right : 105.0 mm
Handshaft Up : 120.0 mm
Handshaft Down : 70.0 mm
Depth : 195.0 mm
Weight Drop : XXX.0 mm

Keyhole Centres : Taken from the Centre of the Handshaft

Handshaft Up - Second Hand : 38 mm
Handshaft Down 1 - Left and Right Windings : 31 mm
Handshaft Down 2 - Bottom Centre Winding : 48 mm
Width - Left to Right Winding Positions : 156 mm

Suits : These Hermle Parts
Handnuts E008.08302 and E008.08303
Hands HM.
Suspension Spring E021.02481
Crutch
Pendulum

Notes : Compatible with Uw6610 / Uw6615 / Uw6625 / Uw6627 / Uw6632 / Uw6638 / Uw66002 / Uw66005 / Uw66009

See : Other Urgos Clock Movements
