Seiko Quartz Time and Alarm Trigger for dials 4mm

Stock Code:

QTA.08

RRP:

$49.50

Your Price:

$49.50

Stock Level:

5 Available

Make an Enquiry

Details

Description

"Seiko" Quartz

Part Number : QTA.08

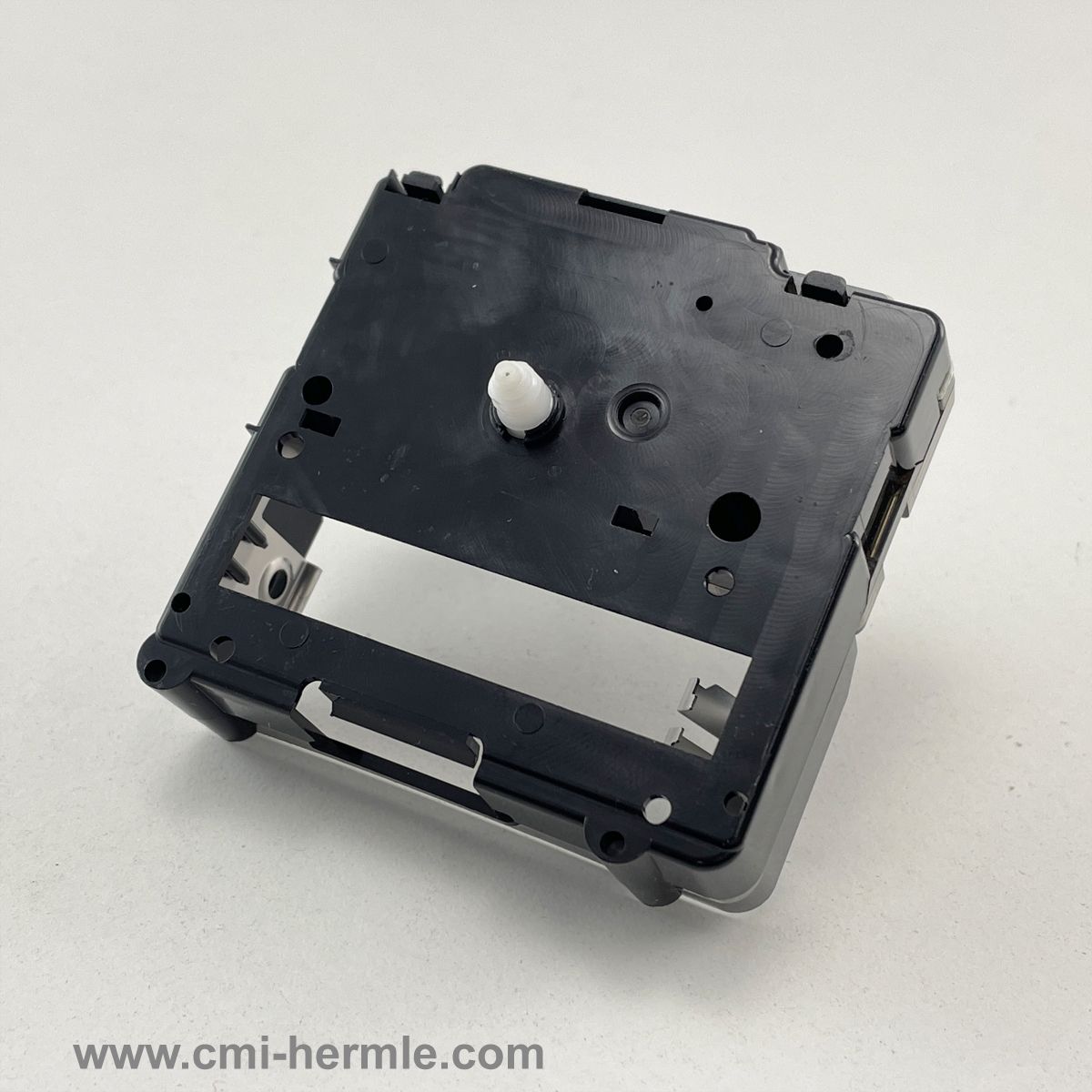

Description : Seiko Quartz Alarm Movement suit Dial Less Than 4 mm Thick
Seiko Trigger Feature as Printed Circuit Board

Size : 60 mm Long x 60 mm Wide x 23 mm Deep
Weight : 45 Grams
Material : ABS Plastic

Features : Seiko Quartz Alarm, Short Shaft, Press Fit
Seiko 35309
Snooze feature
Ascending tone
Supplied with hand setting knob
Supplied with on/off switch
With external wire for snooze switch

Hand shaft is 8.8mm long total.
Max dial thickness to trap is 4mm or less.
Dial hole should be a minimum of 7mm

Uses : These Parts
"C" or LR14 Alkaline Battery.

Suits : These Parts

Small Carriage clock hands are suitable for our UTS & Seiko carriage clock quartz movements.
All clock hands are measured from collet centre to tip of minute hand.

Carriage Clock Movement Collet Dimensions:
UTS movements: Minute= Ø1.95mm, Hour = Ø3.35mm
Seiko movements: Minute = Ø1.90mm, Hour = Ø3.09mm

The hands are generic and can be adjusted to fit. The hand collets may require slots being cut for pinching (by using a piercing saw) and/or the collet can be shortened by filing.

Notes : Press Fit Hand Only.

See : Other Quartz
