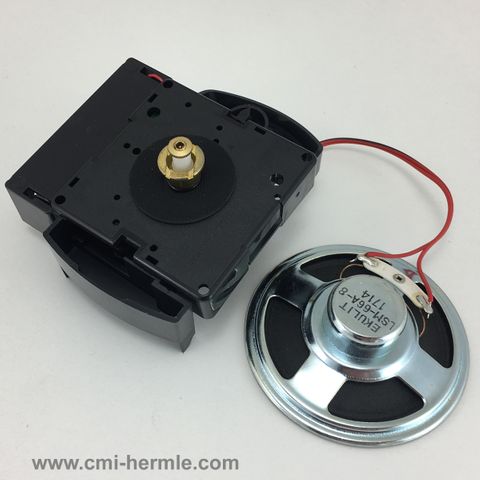

Quartz Westminster- Bim Bam Movement 16mm Shaft

Stock Code:
Q2114.23
RRP:
$121.00
Your Price:
$121.00
Stock Level:
Out of Stock
Make an Enquiry

Details

Description

Hermle Quartz

Part Number : Q2114.23

REPLACEMENT MODELS - FIXINGS ARE NOT SUPPLIED

Description : Quartz Time and Duel Chime Movement 16mm
(Max. Dial Thickness 6mm)

Size : 105 mm Wide x 72 mm Wide x 28 mm Thick
Weight : 115 Grams
Material : ABS Plastic Case

Features : Time ( Hours, Minutes, Seconds )
Volume Settings ( Loud / Medium / Off ).
Auto night reduced volume ( On / Off )
Full "Westminster" or "Bim Bam"

Hand shaft is 16mm long total.
Max dial thickness to trap is 6mm or less. (uses no.X collar)
Dial hole should be a minimum of 10mm
Separate Speaker 66mm Diameter


Uses :
Euroshaft Design Specifications
Hour hand hole bush is 5mm dia
Minute hand hole is slotted 4mm dia slotted is 3mm

Hand nut thread is metric 3.5mm with pitch of 0.35mm
Locking Nut Thread is metric 8mm fine with a pitch of 0.75mm


Suits :
HQ. Euroshaft Hands
E122.0000 Battery ( "AA" or LR6 )

Notes : Hands purchased separately

See : Other Quartz
