Cuckoo 1 Day Mechanical -Auto -19cm Series

Stock Code:

W.00025.01019

RRP:

$297.00

Your Price:

$297.00

Stock Level:

Out of Stock

Make an Enquiry

Details

Description

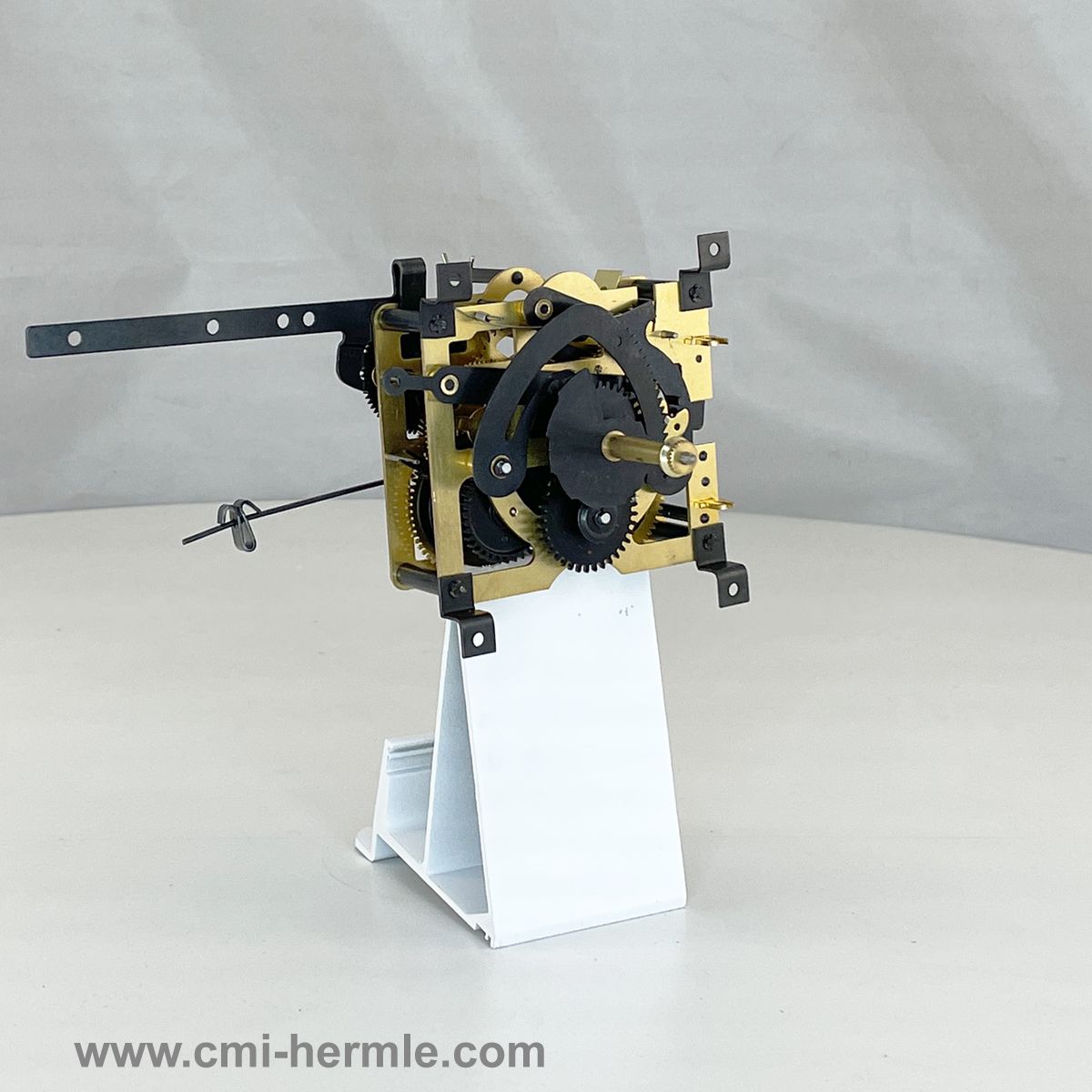

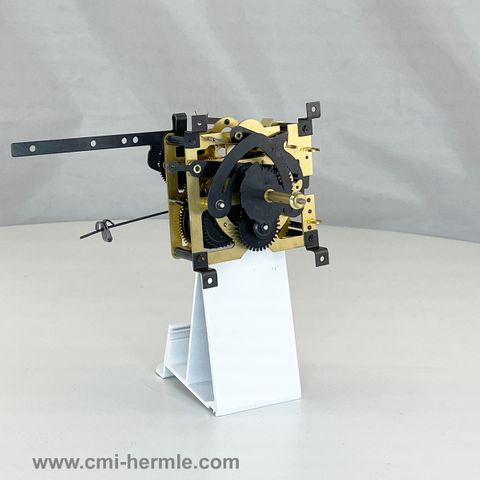

1 Day (Regula 25) Mechanical Cuckoo Movement.

Used as New Replacement Movement.
19.1cm Pendulum Series. Standard. (Not Usually Stamped on Rear Plate)
Will Operate Cuckoo & Rear Gong.
With Chains but no Chain Fittings.
With Auto Off Lever.
No Weights supplied.
No Hands Supplied.

Plate Size: 73 mm Wide x 68 mm High x 20 mm between plates
Weight: 240 grams (with chains)
Materials: Brass & Steel

Normally one day weight driven cuckoo clock movements come with chains, hooks and rings.
This movement uses two weights at 5/8 LBS (275 Grams).
The pendulum is the smaller one day size. Physicall length= 18cm
The pendulum series drop is the measurement from the Centre Wheel Pinion down to
the center of the pendulum leaf where the clock keeps approximate time.

Dimensions:
Plate Size is 73mm wide x 68mm high x 20mm between.
Handshaft length is 43mm fromt front plate to tip.
Handshaft centre of width and 30mm up from base.
Hour shaft tapers from 4.25mm to 4.85mm
Minute position is 2.5mm square.
Rear post is 32mm long.
4 Front mounting feet each 8mm out from front plate.
Weight Drop per Day: 160cm
