Cuckoo Quartz Pendulum Westminster Dancer Movement

Stock Code:
QTP.CUCKOO-1-D
RRP:
$165.00
Your Price:
$165.00
Stock Level:
1 Available
Make an Enquiry

Details

Description

Quartz Engstler Movement with Dancers

Part Number : QTP.CUCKOO-1-D

Description : German Made Quartz Cuckoo and Westminster Chime Pendulum Movement with Dancers
(Max. Dial Thickness 3mm)

Size : 150mm High x 60mm Wide x 50mm Deep ( Movement )
Weight : 150 Grams
Material : ABS Plastic Case

Features : Time ( Hours, Minutes )
Select "Cuckoo" or "Westminster" or "Silent"
Dancers move with Seconds

Pendulum Feature
Hand shaft is 17mm long
Maximum dial thickness to trap is 3mm or less
Dial hole should be a minimum of 8mm

Uses : These Parts
Press Fit Design Specifications
Hour hand hole bush is 5 mm dia
Minute hand hole bush is 3.2 mm dia

Locking nut thread is metric 8mm with pitch of 0.75mm

Suits : These Parts
Press FIt Hands 23mm / 18mm
Dial is 45mm Diameter
Pendulum is 80mm Long
Bird is 26mm Long x 18 mm High
Weights on Chains is 55mm Long x 40mm Wide
E122.0000 Battery ( "AA" or LR6 ) x 2

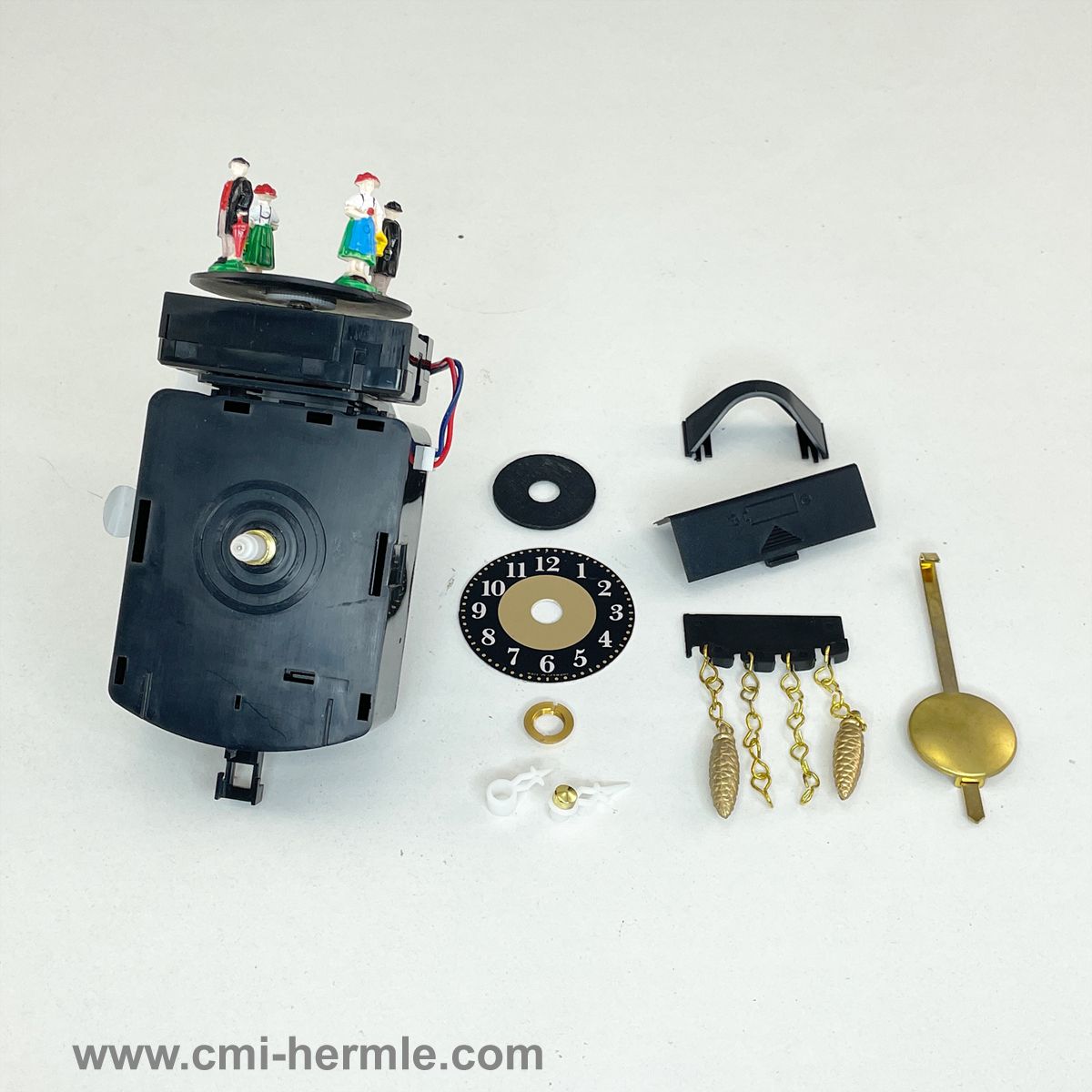

Notes : Supplied as pictured

See : Other Quartz Cuckoo
