Lyre Pendulum 270mm dia x 1080mm (114cm Series) Mercury

Stock Code:

PL.43

RRP:

$264.00

Your Price:

$264.00

Stock Level:

Out of Stock

Make an Enquiry

Details

Description

"Hermle" Mechanical

Part Number : PL.43

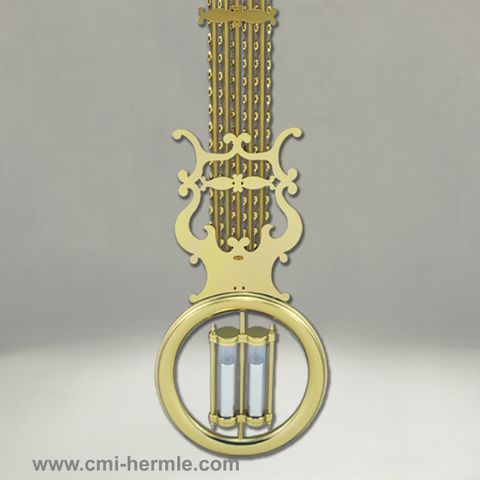

Description : Imitation Mercury Lyre Pendulum to suit Hermle Mechanical Movements in 114cm series

Size : 1080 mm Total Length
Disk : 270 mm Diameter
Weight : 1220 Grams
Material : Polished Brass Alloy and Alloy/Stainless Steel construction

Centimeter Series Information :
Centre Handshaft to Centre of disk : 1045 mm
Centre Handshaft to Bottom of disk : 1209 mm
Minimum Case Width for correct operation of "Auto Beat Adjustment" is : 450 mm
Working Beat Width is : 415 mm

Features : Imitation Mercury Lyre Pendulum with Brass Centre Bar and Parrellel Round Bars
with Brass Alloy Bow Ties and Lyre

Uses : Hermle Parts
231 (270mm Pendulum Disk)
B021.0XXX (Brass Pendulum Rod)
E008.05290 (Pendulum Nut)

Suits : Movements
W.00461.### in 114cm series
W.01161.053 in 114 cm series
W.01161.853 in 114 cm series
W.01171.853 in 114cm Series

Notes : The Length and Weight of the Pendulum Determine the Duration of the Swing

See : Lyre Pendulums
PL.17 75cm series with 115mm disk
PL.18 85cm series with 140mm disk
PL.20 94cm series with 165mm disk
PL.22 94cm series with 140mm disk
PL.33 114cm series with 165mm disk
PL.34 114cm series with 270mm disk
PL.35 114cm series with 270mm disk
PL.36 114cm series with 270mm disk
