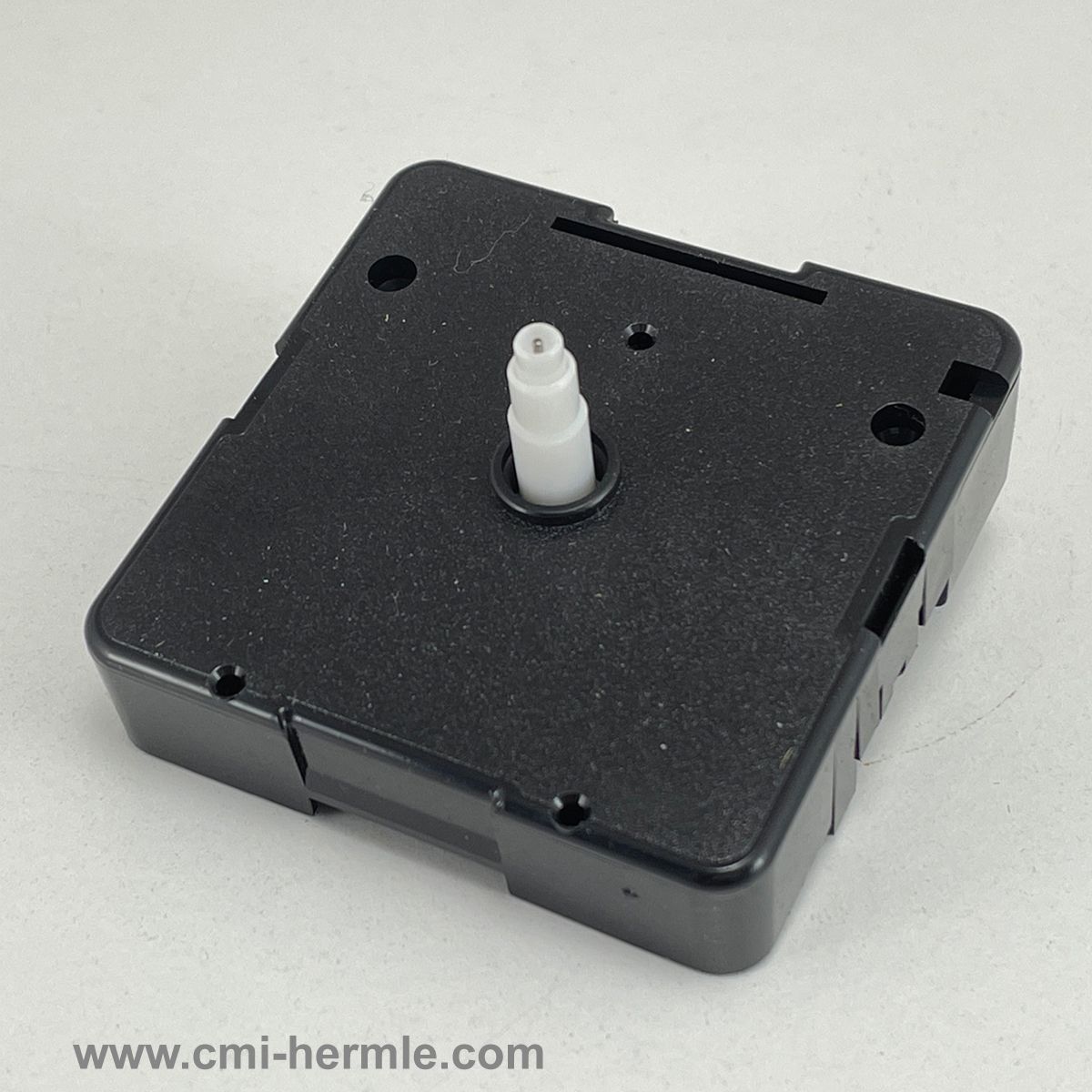

UTS Quartz Press Fit Clock Movement suits Dials 3-6mm

Stock Code:
Q2700.16
RRP:
$16.50
Your Price:
$16.50
Stock Level:
56 Available
Make an Enquiry

Details

Description

"UTS" Quartz

Part Number : Q2700.16

Description : Quartz Clock Movement 16 mm
(Max. Dial Thickness 6 mm)

Size : 56 mm Wide x 56 mm Wide x 17 mm Thick
Weight : 35 Grams
Material : ABS Plastic Case

Features : Time ( Hours, Minutes, Seconds )
Hand shaft is 16 mm long
Maximum dial thickness to trap is 6 mm or less
Dial hole should be a minimum of 10 mm


Uses : These Parts
Press FIt Design Specifications
Hour hand hole bush is 5 mm dia
Minute hand hole is 3.6 mm dia
Second Hand feature pin shaft size: 0.80mm


Suits : These Parts
E122.0000 Battery ( "AA" or LR6 )
HQ. Press Fit Hands
Q2800.011xx Fixing Collar

"UTS" Quartz

Notes : We do not stock press fit Hands.
Only supplied with simple hand for re bushing purposes.
