Ansonia Replacement 23cm 8 day

Stock Code:
W.00884.001023
RRP:
$198.00
Your Price:
$198.00
Stock Level:
2 Available
Make an Enquiry

Details

Description

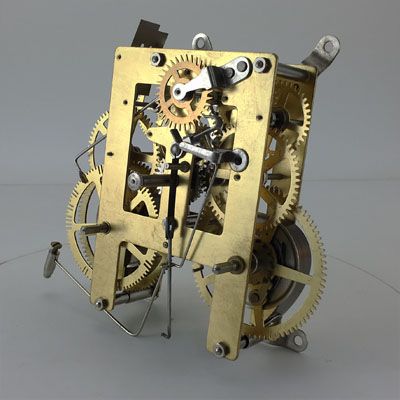

Replacement Mechanical Movement

W.00884.001023 / Mechanical Clock Movement

Replacement Movement for Early "Kitchen Clock" or "Ansonia Style" Movement.
23 cm Pendulum series or 9-1/4 inch Drop (measured from Handshaft center to bottom of Pendulum)
8 Day, Spring Wound, Half Hour Strike Movement.
Verge Escapement, Hammer Strikes a Spiral Gong positioned Underneath.
Rear mounting feet.
This Movement is supplied with 2 sizes of hands and 1 winding key.
{Hands are 3 3/4" - 5 1/4" (135/95mm) and 2 1/4" - 1 3/4" (55/43mm)}

Plate Size : 94 mm x 140 mm x 36 mm Between Plates
Handshaft Size : 28 mm (measured from front plate)

The Keyhole Positions for this Movement are :
Handshaft Center Down to Abor Centers : 30.0 mm
Distance between Arbor Centers : 80.0 mm
Winding Arbor protrudes 18mm long from front plate.
4mm Square uses No.7 key
Crutch total length 80mm (35mm Feather)

Weight : 900 Grams
Materials : Brass and Brass Plated Components, Machined Steel Parts and Nickle Plated Accessories

* Pendulum is NOT Supplied with Movement. (See NOTES below)
* Gong is NOT Supplied with Movement.

Manufacturer: India

Case Requirements : The Handshaft is on the centre line of any clock ( The handshaft is not necessarily at the centre of any clock movement )
Movement Dimensions are therefore all measured from the handshaft : Down, Left, Right and Up ( including any Gong or Bell Assembly )
Depth is total depth from the tip of the Handshaft to the rear most point ( including any Gong or Bell Assembly )

The Measurements for this Movement are :
Handshaft Down : 85.0 mm
Handshaft Left : 90.0 mm
Handshaft Right : 75.0 mm
Handshaft Up : 75.0 mm
Depth : 75.0 mm
Weight Drop :* Not Used on this Model

(Rough Dimensions : 170mm High x 170mm Wide x 75mm Deep.)

NOTES:
Handnuts are used to hold minute hand in place.
Hands with Hour hand bush is 5.6 mm dia / Minute hand bush is 3.5 mm square
Pendulum B021.01066 Ornate Brass or B021.01160 Plain Brass (Pendulums not supplied)
Spiral Gong # 393 (75mm) OR # 394 (150mm)
Gong Mount # 391

See : Other Movements in this Series
W.00884.001023 (23.cm/ Spiral Gong)
W.00885.003033 (33cm/Time Only)
W.00886.005011.5 (11.5cm/Spiral Gong)
