Quartz Trigger Clock Movement for Dials <6mm

Stock Code:
QT.TM16
RRP:
$44.00
Your Price:
$44.00
Stock Level:
16 Available
Make an Enquiry

Details

Description

Quartz

Part Number : QT.TM16

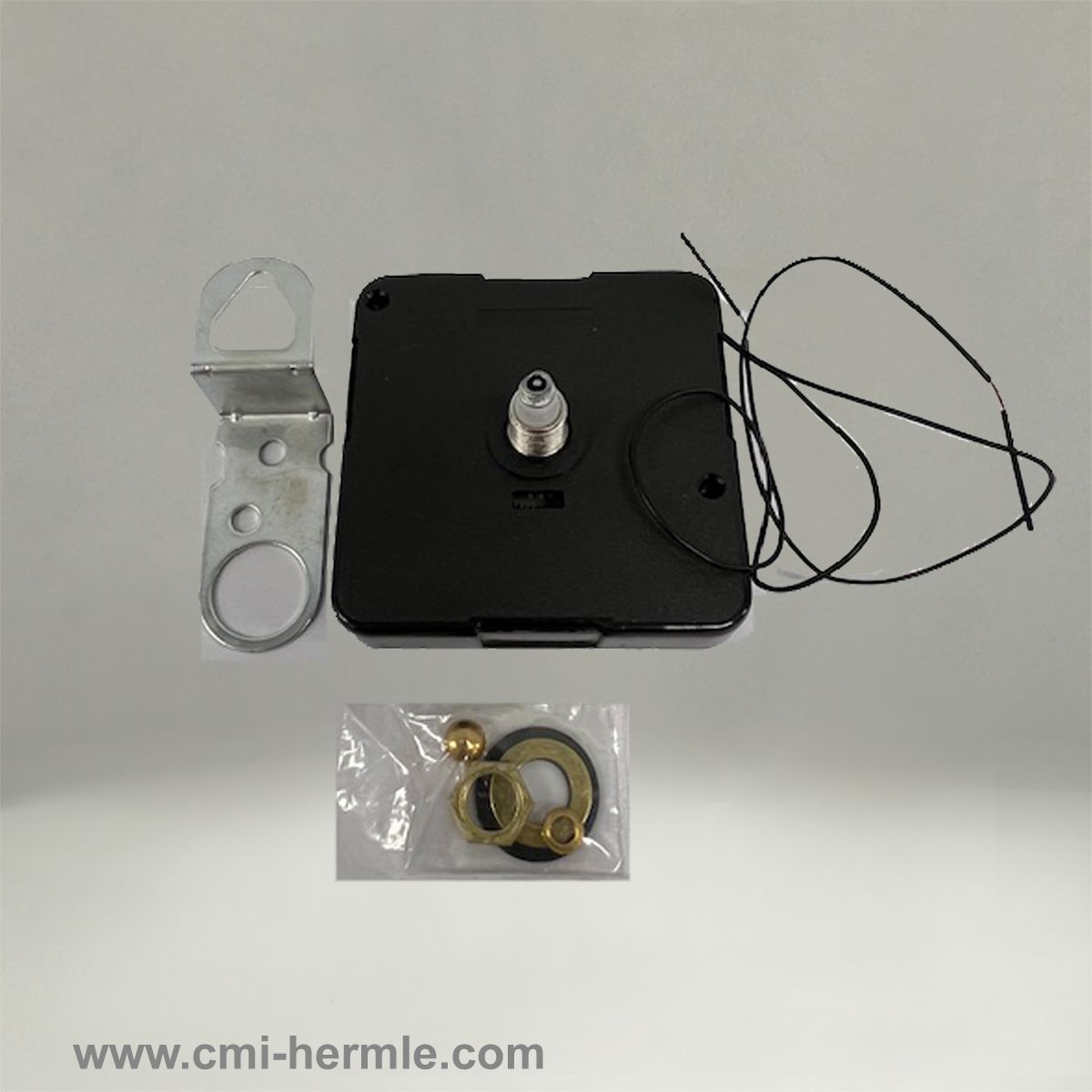

Description : Quartz Time. Trigger Movement 16mm
(Max. Dial Thickness 6mm)

Size : 56 mm Wide x 56 mm Wide x 17 mm Thick
Weight : 35 Grams
Material : ABS Plastic Case

Features : Time ( Hours, Minutes, Seconds )
Creates Electric Pulse on the Hour (Trigger)
Hand shaft is 16 mm long
Maximum dial thickness to trap is 6mm or less
Dial hole should be a minimum of 8mm
Lead wires are 180mm long

Uses : These Parts
Euroshaft Design Specifications
Hour hand hole bush is 5mm dia
Minute hand hole is slotted 4mm dia slotted is 3mm

Hand nut thread is metric 4mm fine with pitch of 0.5mm
Locking nut thread is metric 8mm with pitch of 0.75mm

Suits : These Parts
HQ. Euroshaft Hands
E122.0000 Battery ( "AA" or LR6 )

Notes : Hands purchased separately

See : Other Quartz
