Hermle 4/4 Chime spring wound-Under

Stock Code:
W.00350.020
RRP:
$792.00
Your Price:
$792.00
Stock Level:
1 Available
Make an Enquiry

Details

Description

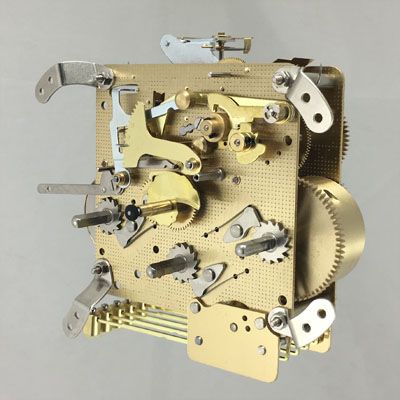

Hermle Movement W0350.020

FLOATING BALANCE 8 DAY SPRING WOUND
WESTMINSTER 4/4 CHIME MOVEMENT.
5 Hammers underneath strike bronze rods on Gong Assembly mounted
under movement. (longest rod 210mm)
Hand shaft length 33.1mm. Plate size 120x120mm.
30mm down from handshaft to centre key winding arbor .
93mm between the left and right key arbors.
Four front mounting brackets.
Select hands prefixed HM.

The Keyhole Positions for this Movement are :

Handshaft Up : 34.2 mm ( Seconds* Not Used on this Model)
Handshaft Down 1 : 14.0 mm (to centre line of left/Right arbors)
Handshaft Down 2 : 16.0 mm (Add to above to get distance of time arbor)
Width : 93.0mm (Between Left and Right Arbor centres)

Movement Dimensions and Keyhole Positions refer page 28 of
CMI Ed15 Catalog available in the Download Section of this Website.
(refer Pendulum Specifications page 6.)
