1/2Hr Strike Spring 114cm Pendulum-Rear -Special_Order

Stock Code:
W.00141.043114
RRP:
$660.00
Your Price:
$660.00
Stock Level:
Out of Stock
Make an Enquiry

Details

Description

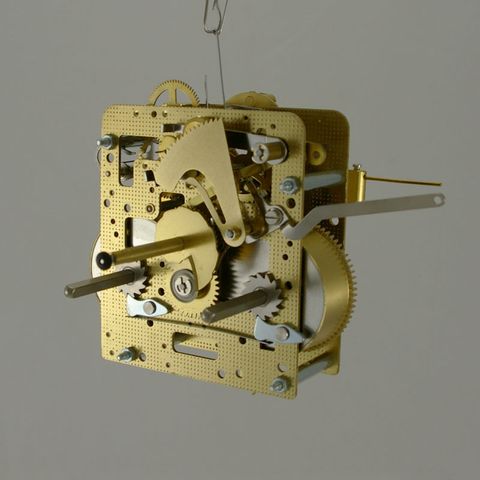

"Hermle" Mechanical

W.00141.043114 / Mechanical Clock Movement

114 cm Pendulum, 14 Day, Spring Wound, Bim Bam, Half Hour Strike Movement, Rear Striking on Gong

Plate Size : 85 x 98 mm x 35.2 mm Between Plates
Handshaft Size : 53.2 mm
Weight : 500 Grams

Materials : Brass and Brass Plated Components, Machined Steel Parts and Nickle Plated Accessories....

Features : Automatic Beat,

Case Requirements : The Handshaft is on the centre line of any clock ( The handshaft is not necessarily at the centre of any clock movement )
Movement Dimensions are therefore all measured from the handshaft : Down, Left, Right and Up ( including any Gong or Bell Assembly )
Depth is total depth from the tip of the Handshaft to the rear most point ( including any Gong or Bell Assembly )
The Weight Drop is Measured from the Handshaft to the Bottom of the Weight Shells after 7 Days ( Handshaft Up + Weight Drop = total length, excluding dial )

The Measurements for this Movement are :

Handshaft Down : 51.5 mm
Handshaft Left : 55.0 mm
Handshaft Right : 55.0 mm
Handshaft Up : 60.0 mm
Depth : 105.0 mm
Weight Drop : * Not Used on this Model

Keyhole Position : The Handshaft is on the centre line of any clock
Keyhole positions are therefore all measured from the Handshaft : Up, Down 1, Down 2 and Wide ( All Measurements are Hole Centres )
Up is to the Second Hand Feature ( Seconds ) on the Centre Line above the Handshaft * THIS MODEL DOES NOT USE A SECOND FEATURE
Down 1 is to the Time/Chime and Strike Winding Positions on the left and right of the Centre Line * MODELS WITH 2 or 3 WINDING BARRELS
Down 2 is to the Time Winding Position also on the Centre Line but below the Handshaft * MODELS WITH 3 WINDING BARRELS
Width is the distance between the Time/Chime and Strike Winding Positions ( described as Down 2 )

The Keyhole Positions for this Movement are :

Handshaft Up : * Not Used on this Model
Handshaft Down 1 : 16.5 mm
Handshaft Down 2 : * Not Used on this Model
Width : 56.5mm

Suits :
Handnuts E008.1202 and E008.1203 ( smaller than W.01151 )
Hands HM. series ( Except HM.08400 for W.01171 )
Suspension Spring E021.00062
Crutch E002.06810
Pendulum PA.13 or PL.33
Barrels B013.9011 ( Time ) & B013.90100 (Strike)
Dial 928.03 and 929.03

See : Other Movements in this Series
W.00140.040
W.00141.031038
W.00141.040015
W.00141.041038
W.00141.041043
W.00141.041053
W.00141.043114
