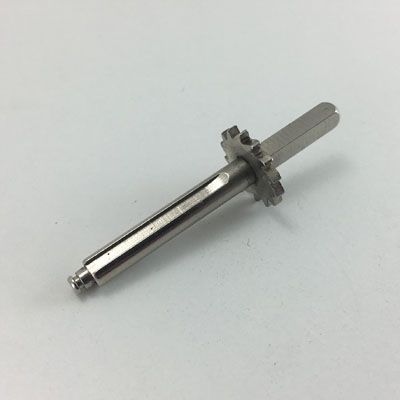

Key Winding Arbor 54mm Long x 4mm Square suits 33.1mm handshafts

Stock Code:

B026.06612

RRP:

$18.00

Your Price:

$18.00

Stock Level:

82 Available

Make an Enquiry

Details

Description

"Hermle" Mechanical

Part Number : B026.06612

Description : Key Winding Arbor to suit Hermle Movements in 33.2 mm Handshaft Lengths. eg.340-020

Size : 5.5 mm Diameter x 53 mm Total Length (4mm Square Drive )
Size : 16.5 mm Diameter x 14 Teeth
Weight : 15 Grams
Material : Nickel Plated Machined Steel.

Features : 4 mm Sq x 20mm Long Winding Arbor, 22 mm Slotted Keyway, 3.5 mm Diameter End
Machined from a single piece of Steel Total Length 54mm, this Winding Arbour with Rachet Wheel is
the modern replacement for the outgoing 2 piece assembly (See: E005.00270)

Uses : These Hermle Parts
E013.02040 C Clip (6.0mm x 2.30mm) * Not included

Suits : These Hermle Parts
B013.90100 ( No 10 ) W.00140 / W.00141 / W.00150 / W.00151
B013.90110 ( No 11 ) W.00140 / W.00141 / W.00150 / W.00151
B013.90400 ( No 40 ) W.00340 / W.00341
B013.90410 ( No 41 ) W.00340 / W.00341
B013.90500 ( No 50 ) W.00350 / W.00351
B013.90520 ( No 52 ) W.00350 / W.00351
B013.90540 ( No 54 ) W.00350 / W.00351

Notes : This Longer Design Allows for C Clip Fastening on the Rear Plate
It also has a longer Key Winding Arbor making it more suited to the 33.2 mm Handshaft length
Movement Configuration and the correct Dial / Pillar Length combinations

See: Other Key Winding Arbors
